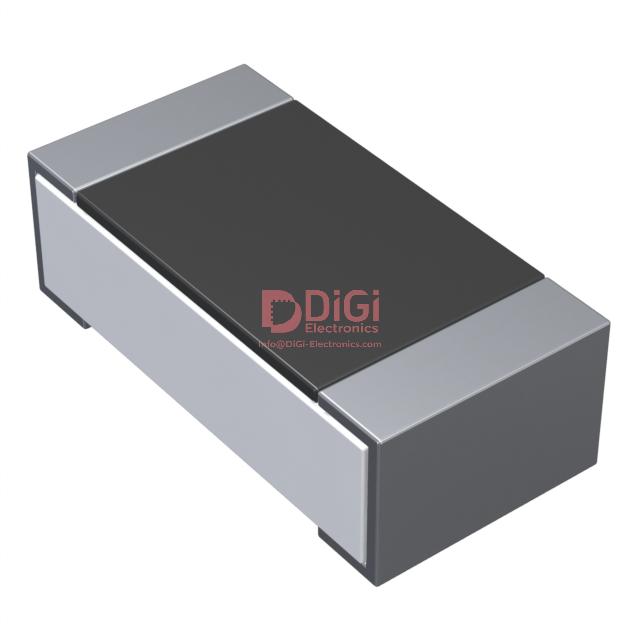

CR0603-JW-822E The Bourns CR0603-JW-822ELF is a surface mount chip resistor with 8.2 kOhms resistance and ±5% tolerance. It features a 0.1W power rating and operates within a temperature range of -55°C to 155°C.
Mfr Part #:

CR0603-JW-822E

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns CR0603-JW-822ELF is a surface mount chip resistor with 8.2 kOhms resistance and ±5% tolerance. It features a 0.1W power rating and operates within a temperature range of -55°C to 155°C.
✓ Total Stock: 4,542 pcs
$ Price Range: $0.05

CR0603-JW-822E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
4,542 pcs
On Request
4542 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CR0603-JW-822E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Mounting Type
Operating Temperature
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
View Similar Products (0)

CR0603-JW-822E Description

Short technical summary and product information.

This Bourns CR0603-JW-822ELF is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 8.2 kOhms with a tolerance of ±5% and a power rating of 0.1W (1/10W).



The resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. Its compact 0603 (1608 Metric) package size makes it suitable for space-constrained designs.



Key features include its moisture-resistant thick film composition. The component is supplied in tape and reel packaging, ideal for automated assembly processes.

CR0603-JW-822E Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CR0603
Canonical Name: Bourns CR0603-JW-822ELF Chip Resistor - Surface Mount
Subcategory: Surface Mount

CR0603-JW-822E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CR0603-JW-822E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CR0603-JW-822E Features

  • 8.2 kOhm resistance with ±5% tolerance.
  • Rated for 0.1W power dissipation.
  • ±200ppm/°C temperature coefficient.
  • 0603 surface mount package.
  • Moisture resistant thick film construction.

CR0603-JW-822E Applications

  • Suitable for general purpose circuits.
  • Ideal for moisture-sensitive environments.
  • Used in consumer electronics.
  • Applicable in industrial control modules.

CR0603-JW-822E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CR0603-JW-822E?

The resistance value is 8.2 kOhms.

What is the tolerance of the CR0603-JW-822E?

The tolerance is ±5%.

What is the power rating of the CR0603-JW-822E?

The power rating is 0.1W (1/10W).

What is the temperature coefficient of the CR0603-JW-822E?

The temperature coefficient is ±200ppm/°C.

What is the package/case of the CR0603-JW-822E?

The package is 0603 (1608 Metric).

What is the operating temperature range?

The operating temperature range is -55°C to 155°C.

Does the CR0603-JW-822E have moisture resistance?

Yes, it features moisture resistance.
