| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
345 pcs
|
345 pcs | On Request | 1 | On Request | On Request | 0602 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

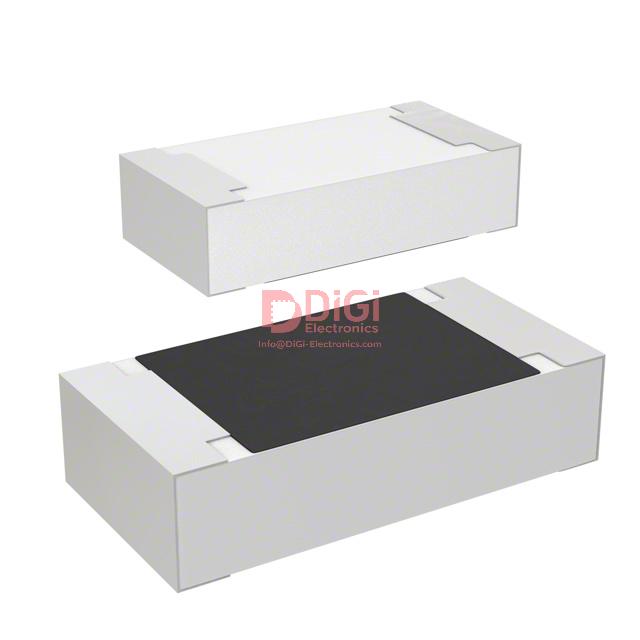

This Bourns CR0603-JW-562ELF is a surface mount thick film chip resistor. It offers a resistance value of 5.6 kΩ with a tight tolerance of ±5%. The component is rated for 0.1W of power and operates across a wide temperature range of -55°C to 155°C.
The resistor is housed in a standard 0603 (1608 Metric) package, making it suitable for automated assembly processes. Its thick film composition and robust construction ensure reliable performance in various electronic circuits. The moisture-resistant feature adds to its durability in different environmental conditions.
With 2 terminations, this chip resistor is designed for efficient soldering and integration into printed circuit boards. Its dimensions are approximately 1.60mm in length and 0.80mm in width, with a height of 0.55mm, fitting standard footprint requirements for compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5.6 kΩ.
The tolerance is ±5%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The package type is 0603 (1608 Metric).
The temperature coefficient is ±200ppm/°C.
