| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
9,500 pcs
|
9500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

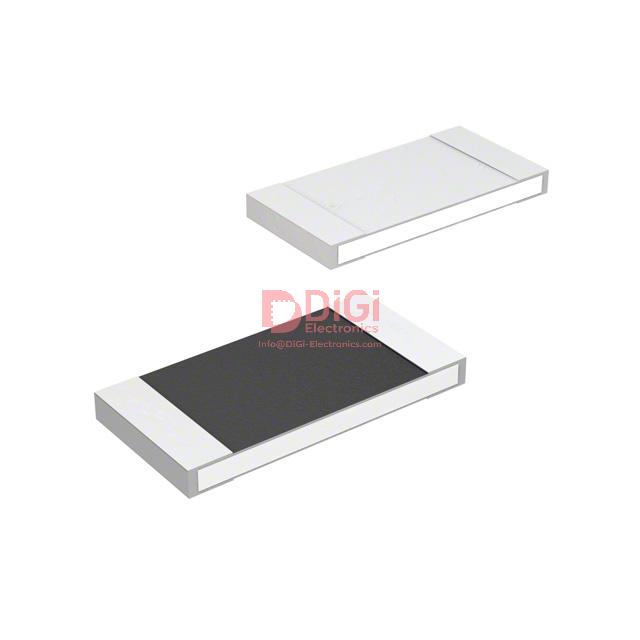

This Bourns CR0603-JW-103ELF is a surface-mount thick film chip resistor designed for various electronic applications. It offers a resistance value of 10 kOhms with a tight tolerance of ±5%, ensuring accuracy in circuit performance.
The resistor is rated for 1/10W of power and operates within a wide temperature range of -55°C to +155°C. Its compact 0603 (1608 Metric) package size makes it suitable for space-constrained designs. The component features a thick film composition and a moisture-resistant design.
Key electrical characteristics include a temperature coefficient of ±200ppm/°C. The component has two terminations and is supplied in tape and reel packaging, facilitating automated assembly processes. This resistor is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kOhms.
The tolerance is ±5%.
The power rating is 0.1W, or 1/10W.
The temperature coefficient is ±200ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor measures 1.60mm in length and 0.80mm in width, with a height of 0.55mm.
The package type is 0603 (1608 Metric).
