| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,890 pcs
|
4890 pcs | On Request | 1 | On Request | On Request | 1427 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

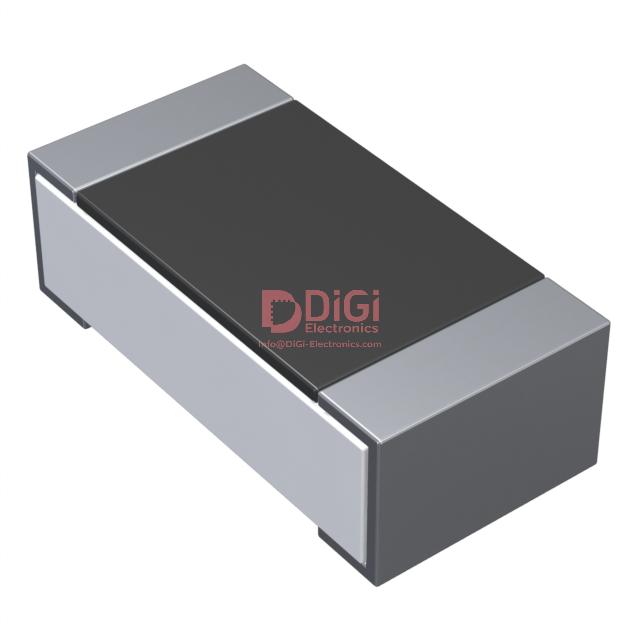

This Bourns CR0603-FX-56R2ELF is a surface mount thick film chip resistor. It offers a resistance value of 56.2 Ohms with a tight tolerance of ±1%. The power rating for this component is 0.1W (1/10W).
The operating temperature range for this resistor is -55°C to 155°C, making it suitable for various environmental conditions. It features a standard 0603 package size (1608 Metric) and is supplied on tape and reel for automated assembly processes.
The thick film construction provides reliability for general-purpose applications. The component's dimensions are approximately 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations.
Key electrical characteristics include a temperature coefficient of ±100ppm/°C. The resistor is also noted for being moisture resistant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 56.2 Ohms.
The tolerance is ±1%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The resistor is in a 0603 (1608 Metric) package.
The temperature coefficient is ±100ppm/°C.
