| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
$0.01
|
20000 pcs |
$0.01
|
1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
4,882 pcs
|
4882 pcs | On Request | 1 | On Request | On Request | 1429 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

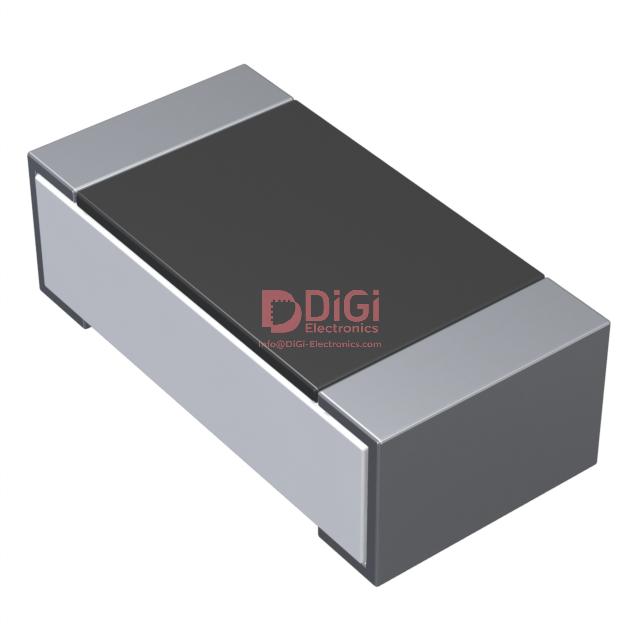

This Bourns CR0603-FX-4702ELF is a surface mount chip resistor from the CR0603 series. It features a resistance value of 47 kOhms with a tight tolerance of ±1%. The resistor is designed for a power rating of 0.1W (1/10W) and has a temperature coefficient of ±100ppm/°C.
The component operates within an extended temperature range of -55°C to +155°C. Its thick film composition and moisture-resistant feature make it suitable for various applications. The package size is 0603 (1608 Metric), with dimensions of 1.60mm x 0.80mm and a height of 0.55mm.
Key electrical characteristics include a maximum working voltage of 75V and a maximum overload voltage of 150V. The resistor utilizes a three-layer termination process with a nickel barrier for enhanced solderability and resistance to leaching. It is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 47 kOhms.
The tolerance is ±1%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to +155°C.
It is a 0603 (1608 Metric) surface mount package.
The temperature coefficient is ±100ppm/°C.
