| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,950 pcs
|
4950 pcs | On Request | 1 | On Request | On Request | 1439 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

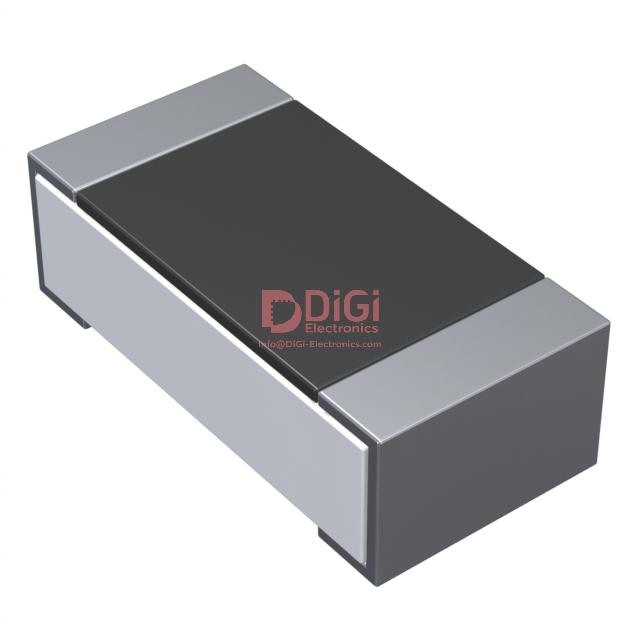

This Bourns CR0603-FX-4700ELF is a surface mount thick film chip resistor designed for various electronic applications. It offers a resistance value of 470 Ohms with a tight tolerance of ±1%, ensuring precise circuit performance.
The resistor has a power rating of 0.1W (1/10W) and a temperature coefficient of ±100ppm/°C, making it suitable for applications requiring stable electrical characteristics over a wide temperature range of -55°C to 155°C.
Packaged in a standard 0603 (1608 Metric) case, this component features moisture resistance and is supplied on tape and reel for automated assembly processes. Its thick film composition and robust termination process contribute to its reliability and solderability.
The dimensions of the resistor are approximately 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations, making it a versatile component for surface mount designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 470 Ohms.
The tolerance is ±1%.
The power rating is 0.1W, or 1/10W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor is supplied in a 0603 (1608 Metric) package.
