| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,939 pcs
|
4939 pcs | On Request | 1 | On Request | On Request | 1435 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

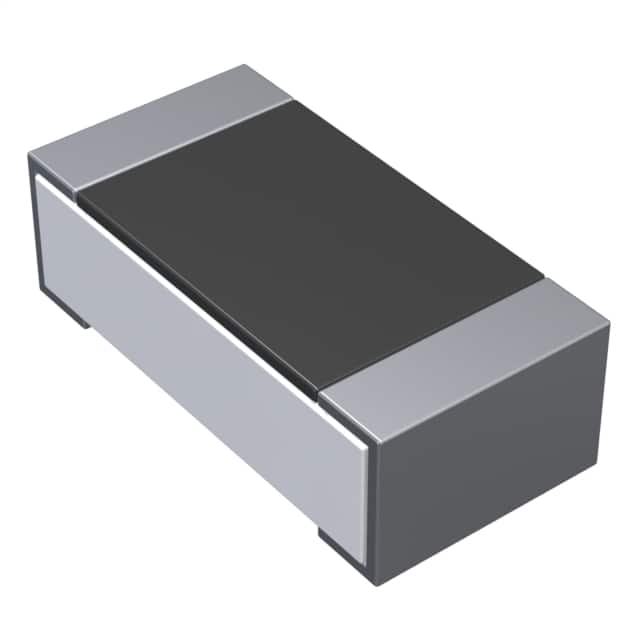

This Bourns CR0603-FX-2201ELF is a surface mount chip resistor from the CR Series. It features a thick film composition and a resistance value of 2.2 kΩ with a tight tolerance of ±1%. The power rating for this component is 0.1W (1/10W).
The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C. The resistor is housed in a standard 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations and is designed to be moisture resistant.
This component is suitable for various electronic applications requiring reliable surface mount resistors. Its construction and specifications make it a versatile choice for general-purpose and specialized circuit designs. The component is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.2 kΩ.
The tolerance is ±1%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±100ppm/°C.
The resistor measures 1.60mm in length, 0.80mm in width, and 0.55mm in height.
The resistor is supplied in a 0603 (1608 Metric) package.
