Mfr Part #:

CR0603-FX-1501ELF

Mfr Name: Bourns

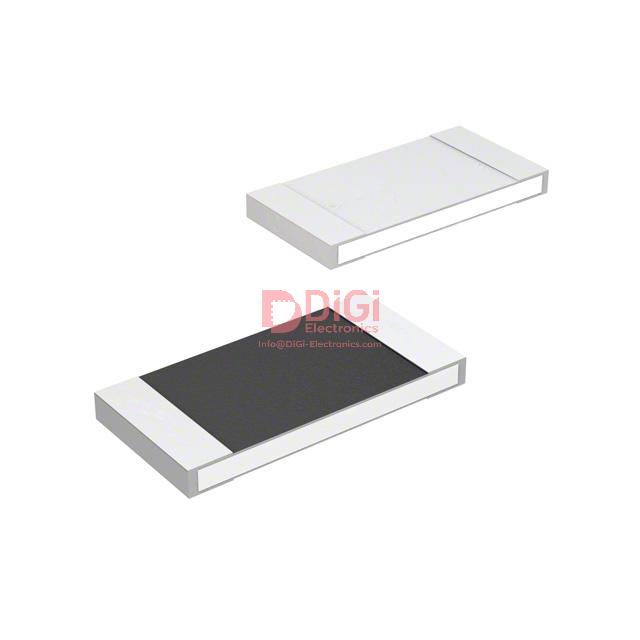

This Bourns CR0603-FX-1501ELF is a thick film chip resistor with a resistance of 1.5 kΩ and a tolerance of ±1%. It has a power rating of 0.1W and comes in a 0603 package.

✓ Total Stock: 5,743 pcs

$ Price Range: $0.05

CR0603-FX-1501ELF Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	4,955 pcs On Request	4955 pcs	On Request	1	On Request	On Request	1430	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	394 pcs On Request	394 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	394 pcs On Request	394 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CR0603-FX-1501ELF Description

Short technical summary and product information.

The Bourns CR0603-FX-1501ELF is a surface mount chip resistor designed for various electronic applications. It features a thick film composition, providing reliable performance.

Key electrical characteristics include a resistance value of 1.5 kΩ with a tight tolerance of ±1%. The power rating is 0.1W (1/10W), and it operates within a temperature range of -55°C to 155°C. The temperature coefficient is ±100ppm/°C.

Mechanically, this resistor is housed in a 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations. The component is also noted for moisture resistance and is classified under Moisture Sensitivity Level 1.

This component is suitable for general-purpose electronic circuits where precise resistance values and stable operation over a wide temperature range are required. Its surface-mount package facilitates automated assembly processes.

CR0603-FX-1501ELF Quick Information

Product Type: Chip Resistor - Surface Mount

Canonical Name: Bourns CR0603-FX-1501ELF Thick Film Chip Resistor

Subcategory: Surface Mount

CR0603-FX-1501ELF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CR0603-FX-1501ELF Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CR0603-FX-1501ELF Features

1.5 kΩ resistance with ±1% tolerance.
0.1W power rating in a 0603 package.
Wide operating temperature range: -55°C to 155°C.
Thick film composition for reliable performance.
Moisture resistant with MSL 1 rating.

CR0603-FX-1501ELF Applications

Suitable for general electronic circuits.
Ideal for automated assembly processes.
Requires precise resistance values.
Needs stable operation over temperature.

CR0603-FX-1501ELF FAQs

6 frequently asked questions generated from this part’s specifications.

What is the resistance value of the CR0603-FX-1501ELF resistor?

The resistance value is 1.5 kΩ.

What is the tolerance of the CR0603-FX-1501ELF resistor?

The tolerance is ±1%.

What is the power rating of the CR0603-FX-1501ELF resistor?

The power rating is 0.1W, or 1/10W.

What is the temperature coefficient for this resistor?

The temperature coefficient is ±100ppm/°C.

What are the operating temperature limits for the CR0603-FX-1501ELF?

The operating temperature range is -55°C to 155°C.

What is the package size of the CR0603-FX-1501ELF resistor?

The package size is 0603 (1608 Metric).
