| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | 1245 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

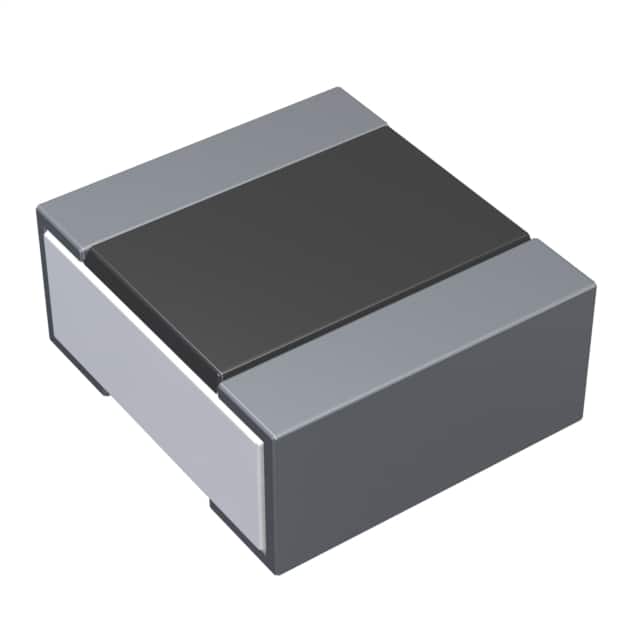

This Bourns CR0402-FX-6040GLF is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 604 Ohms with a tight tolerance of ±1%. The resistor has a power rating of 1/16W and a temperature coefficient of ±100ppm/°C.
The component operates within a temperature range of -55°C to +155°C. Its compact 0402 (1005 Metric) package makes it suitable for high-density circuit designs. The thick film composition ensures reliable performance in various electronic circuits.
Key electrical characteristics include a resistance of 604 Ohms and a ±1% tolerance. The power rating is 0.063W (1/16W), and the temperature coefficient is ±100ppm/°C. The operating temperature range is -55°C to +155°C.
The CR0402-FX-6040GLF is housed in an 0402 package, measuring 1.00mm in length and 0.50mm in width, with a height of 0.40mm. It features two terminations and is constructed using thick film technology.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 604 Ohms.
The tolerance is ±1%.
The power rating is 1/16W (0.063W).
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to +155°C.
It is supplied in an 0402 (1005 Metric) package.
