| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | 1830 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

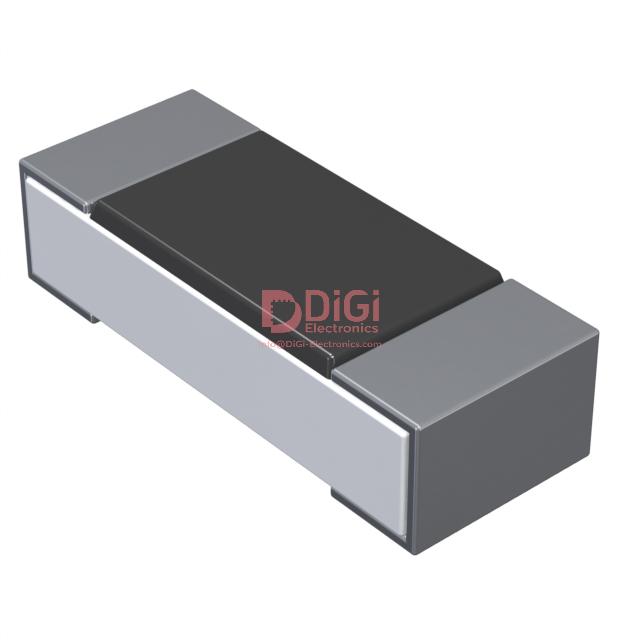

This Bourns CR0402-FX-1300GLF is a surface mount thick film chip resistor designed for various electronic applications. It features a precise resistance value of 130 Ohms with a tight tolerance of ±1%. The resistor is rated for a power of 1/16W and has a temperature coefficient of ±100ppm/°C, ensuring stable performance across its operating temperature range of -55°C to 155°C.
The component is housed in a compact 0402 (1005 Metric) package, making it suitable for high-density circuit designs. Its thick film composition and robust construction provide reliability for demanding applications. The resistor is supplied in tape and reel packaging for automated assembly processes.
Key electrical characteristics include a maximum working voltage suitable for its power rating and a low profile for space-constrained environments. The three-layer termination process with a nickel barrier enhances solderability and prevents leaching, contributing to long-term performance and ease of assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 130 Ohms.
The tolerance is ±1%.
The power rating is 0.063W, or 1/16W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor is in a 0402 (1005 Metric) package.
