| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| For Measuring | |
| Frequency | |
| Lead Spacing | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

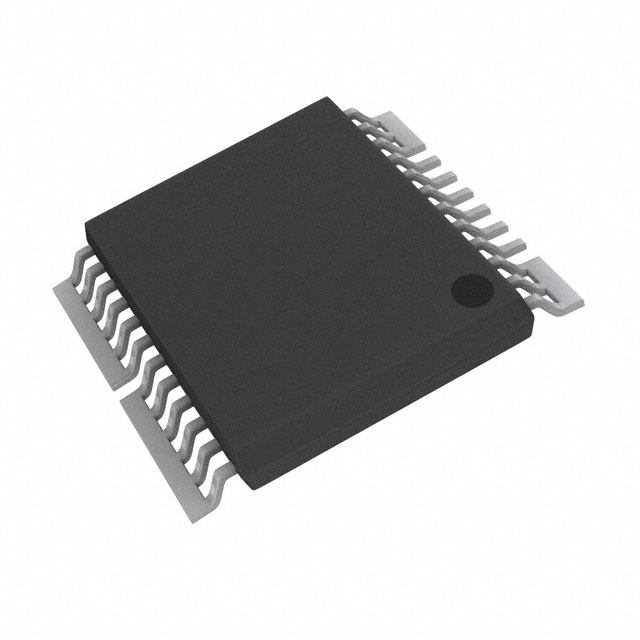

The Asahi Kasei Microdevices/AKM CQ330E is a Hall Effect current sensor capable of measuring AC/DC currents up to 20.5A. This open-loop sensor provides a ratiometric voltage output and is designed for bidirectional current flow.
With an operating voltage range of 4.5V to 5.5V, the CQ330E offers a sensitivity of 200mV/A and a frequency response up to 1MHz. Its accuracy is rated at ±0.5% and linearity at ±0.6%, with a fast response time of 0.5µs.
The sensor is housed in a 24-LSSOP package with a surface mount type. It operates within a temperature range of -40°C to 90°C. This component is suitable for applications requiring precise current monitoring in AC/DC systems.
Key specifications include a 20.5A current rating, 1MHz frequency, and ±0.5% accuracy. The device is packaged in a 24-LSSOP for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CQ330E sensor has a current rating of 20.5A.
The CQ330E sensor is designed for measuring both AC and DC current.
The operating voltage range for the CQ330E is 4.5V to 5.5V.
The CQ330E current sensor has a frequency response of 1MHz.
The CQ330E is supplied in a 24-LSSOP package.
The CQ330E sensor is designed for surface mount installation.
The operating temperature range for the CQ330E is -40°C to 90°C.
