| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,640 pcs
|
9640 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| For Measuring | |
| Frequency | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Tape & Reel | |
| Voltage |

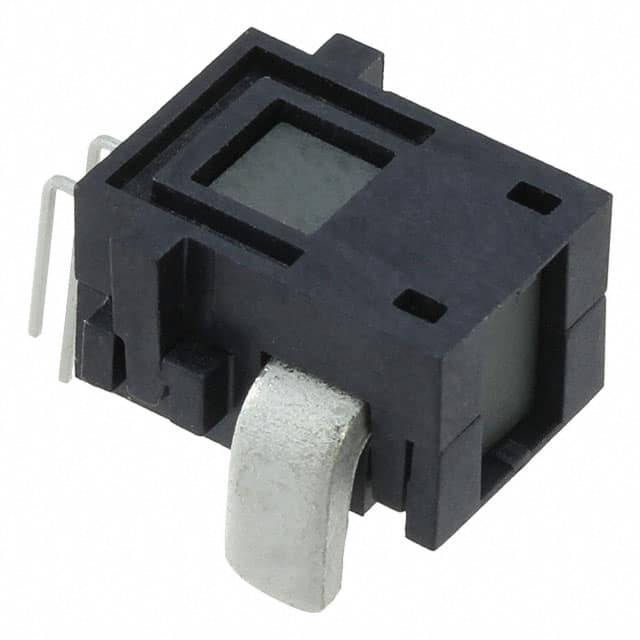

The AKM Semiconductor CQ2064 is a versatile current sensor utilizing Hall Effect technology for accurate AC/DC measurements. It is rated for a maximum current of 54A and features an open-loop, bidirectional sensing capability.
This sensor operates within a voltage range of 4.5V to 5.5V and maintains a wide operating temperature range from -40°C to 90°C. Key performance specifications include a sensitivity of 40mV/A, accuracy and linearity of ±1%, and a fast response time of 1µs. The sensor type is Hall Effect, open loop, with a ratiometric voltage output.
Designed for through-hole mounting, the CQ2064 comes in a module package. Its frequency response extends to 400kHz, making it suitable for various power monitoring and control applications. The single-channel design simplifies integration into electronic systems requiring precise current detection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CQ2064 sensor has a maximum current rating of 54A.
The CQ2064 sensor can measure both AC and DC current.
The operating voltage range for the CQ2064 sensor is 4.5V to 5.5V.
The CQ2064 sensor operates within a temperature range of -40°C to 90°C.
The sensitivity of the CQ2064 current sensor is 40mV/A.
The CQ2064 sensor has an accuracy and linearity of ±1%.
The response time of the CQ2064 sensor is 1µs.
