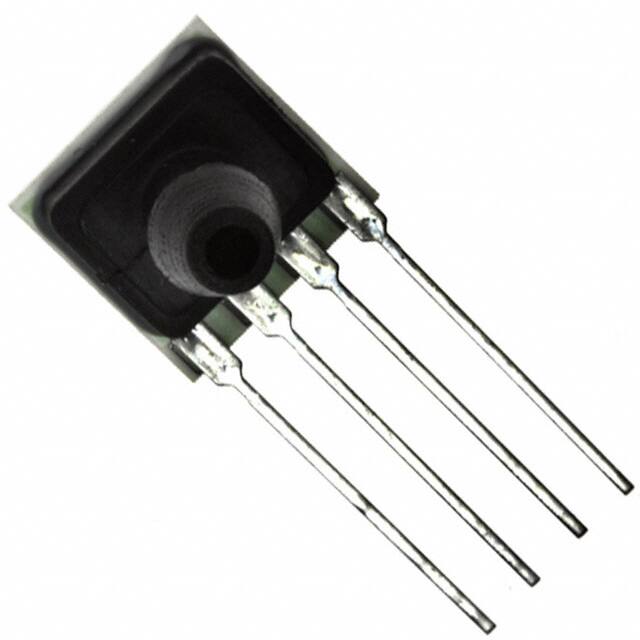

CPX15AF The Honeywell CPX15AF is an absolute pressure sensor designed for board mounting. It features a 15 PSI pressure range and a Wheatstone Bridge output.
Mfr Part #:

CPX15AF

Available from 1 distributors
Mfr Name: Honeywell
Honeywell
The Honeywell CPX15AF is an absolute pressure sensor designed for board mounting. It features a 15 PSI pressure range and a Wheatstone Bridge output.
✓ Total Stock: 18 pcs
$ Price Range: $1.50

CPX15AF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CPX15AF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Applications
Lead Spacing
Maximum Pressure
Mounting Type
Operating Pressure
Operating Temperature
Output
Output Type
Port Size
Port Style
Pressure Type
Tape & Reel
Termination Style
Voltage
View Similar Products (0)

CPX15AF Description

Short technical summary and product information.

The Honeywell CPX15AF is an absolute pressure sensor with a 15 PSI (103.42kPa) operating pressure range and a maximum pressure rating of 45 PSI (310.26kPa). It is designed for board mounting applications and features a 0.15" (3.8mm) tube port style with a barbed port. The sensor utilizes a Wheatstone Bridge output, providing a voltage range of 0 mV to 253 mV (5V) with an accuracy of ±2%.



This sensor operates within a temperature range of -25°C to 85°C and requires an operating voltage between 3V and 12V. The termination style is PC Pin, and it is housed in a 4-SIP Module package. The mounting type is Through Hole, making it suitable for integration into various electronic circuits requiring pressure monitoring.



Key specifications include its absolute pressure sensing capability, a 0.15" port size, and a Wheatstone Bridge output. The CPX15AF is designed for applications requiring reliable pressure measurement within its specified operating conditions.

CPX15AF Quick Information

Product Type: Pressure Sensor
Series: CPX
Canonical Name: Honeywell CPX15AF Absolute Pressure Sensor
Subcategory: Absolute Pressure Sensor

CPX15AF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CPX15AF Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

CPX15AF Features

  • Absolute pressure sensor with 15 PSI range.
  • 0.15" barbed port for fluid connection.
  • Wheatstone Bridge output provides analog signal.
  • Board mountable with Through Hole package.
  • Operates from -25°C to 85°C.

CPX15AF Applications

  • Suitable for board-level pressure monitoring.
  • Used in systems requiring absolute pressure sensing.
  • Integrates into circuits with Through Hole mounting.
  • Designed for applications with 3V to 12V supply.

CPX15AF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CPX15AF sensor?

The operating temperature range is -25°C to 85°C.

What is the pressure range of the CPX15AF sensor?

The sensor operates at 15PSI (103.42kPa) and has a maximum pressure rating of 45PSI (310.26kPa).

What type of output does the CPX15AF sensor provide?

The CPX15AF sensor provides a Wheatstone Bridge output, ranging from 0 mV to 253 mV (5V).

How is the CPX15AF sensor mounted?

The CPX15AF sensor is mounted using the Through Hole method.

What is the port size and style for the CPX15AF sensor?

The port size is 0.15" (3.8mm) Tube, and the port style is Barbed.
