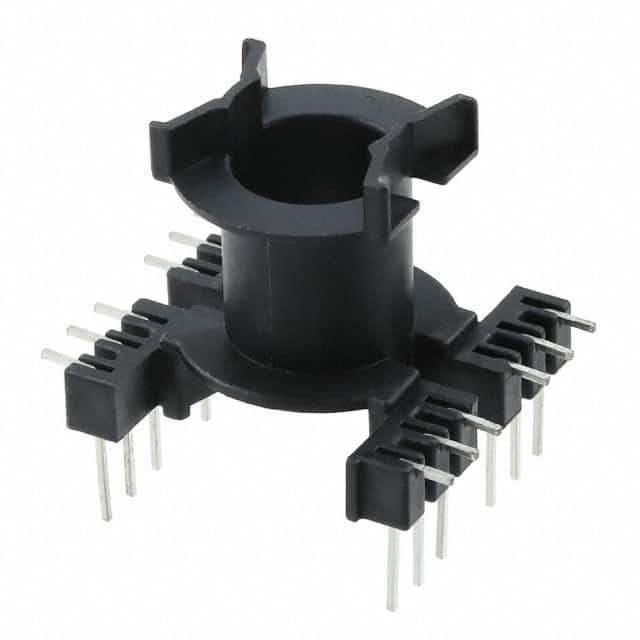

This Ferroxcube CPV-PQ26/25-1S-12PD-Z is a vertical coil former, part of the PQ 26 x 25 series. It is designed for use in magnetic components, providing a structure for winding coils.
The coil former is constructed from thermoplastic material and features a vertical mounting orientation. It is specified as RoHS3 compliant, indicating adherence to environmental regulations regarding hazardous substances.
Key specifications include its PQ 26 x 25 package size and vertical mounting type. The datasheet provides detailed dimensions and material properties for various core types (3C94, 3C95, 3C96, 3C97, 3F36, 3F46), including inductance factors, power loss at different frequencies and flux densities, and saturation flux density.
This component is suitable for applications requiring custom inductor or transformer designs where a specific coil former geometry and material properties are necessary. Its vertical orientation can be advantageous for space-constrained PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The accessory type is Bobbin (Coil Former), Vertical.
The supplier device package is PQ 26 x 25.
Yes, this part is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The nominal dimensions are A: 26.84 mm, B: 18.55 mm, C: 22.04 mm, D2: 22.96 mm, D3: 12.2 mm, E: 6 mm, F: 10.5 mm, H1: 24.95 mm, H2: 16.4 mm.
The inductance factor for material 3C94 is 5250 nH/turns² with a tolerance of +25% -25%.
The maximum power loss for material 3C95 at 100 kHz and 200 mT is 3.1 W/set at 100 ºC and 3.4 W/set at 25 ºC.
