| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | 1331 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Coupler Type | |
| Coupling Factor | |
| Frequency | |
| Insertion Loss | |
| Package / Case | |
| Return Loss | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel |
The CPL-WB-00C2 from STMicroelectronics is a standard RF Directional Coupler suitable for GSM and WCDMA applications. It features a wide operating frequency range from 824MHz to 2.17GHz, a coupling factor of 34dB, and a low insertion loss of 0.1dB. The return loss is specified at 15dB.

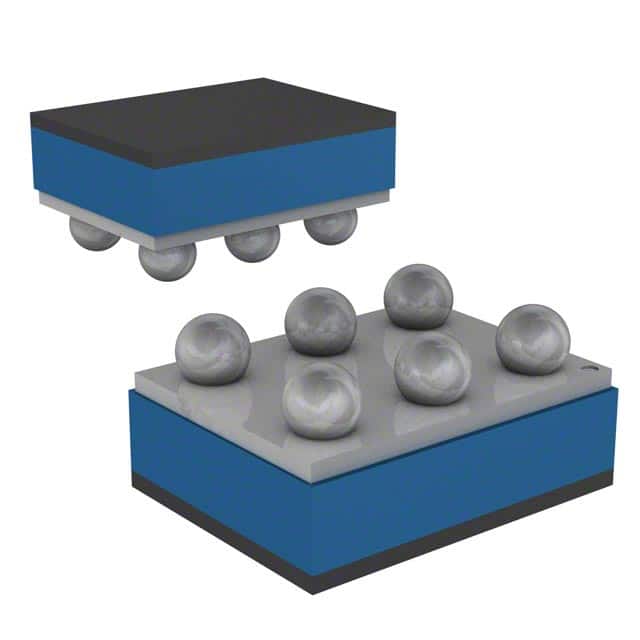

This component is supplied in a 6-WFBGA, FCBGA package, also referred to as 6-FlipChip. Its RoHS 3 status is compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is unaffected.
This RF directional coupler is designed to efficiently manage RF power signals in communication systems. Its specifications make it suitable for integration into various wireless infrastructure and mobile device designs where precise RF signal control is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CPL-WB-00C2 operates from 824MHz to 2.17GHz.
The coupling factor is 34dB.
The insertion loss is 0.1dB.
It is supplied in a 6-WFBGA, FCBGA package.
It is suitable for GSM and WCDMA applications.
