| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

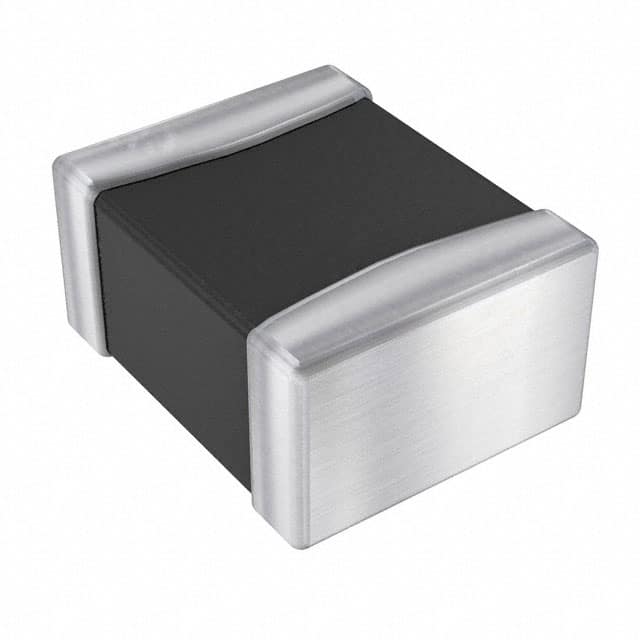

The CPI0806J4R7R-10 is a fixed multilayer inductor manufactured by Laird Technologies. It offers an inductance of 4.7 µH with a tolerance of ±20%. The component is unshielded and designed for surface mount assembly.
This inductor is rated for a continuous current of 1.1 A and has a maximum DC resistance (DCR) of 300 mΩ. It operates over a temperature range of -55°C to +125°C, making it suitable for a wide variety of environments.
The device is housed in an 0806 (2016 Metric) package with dimensions of 2.00 mm x 1.60 mm and a height of 1.00 mm. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.45 | $0.45 |
| 100+ | $0.37 | $0.37 |
| 3,000+ | $0.28 | $0.28 |
| 6,000+ | $0.26 | $0.26 |
| 9,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH with a tolerance of ±20%.
The continuous current rating is 1.1 A.
The DC resistance is 300 mΩ.
It is an unshielded inductor.
It comes in an 0806 (2016 Metric) surface mount package with dimensions 2.00 mm x 1.60 mm x 1.00 mm.
The operating temperature range is -55°C to +125°C.
Yes, it is listed as RoHS3 compliant.
