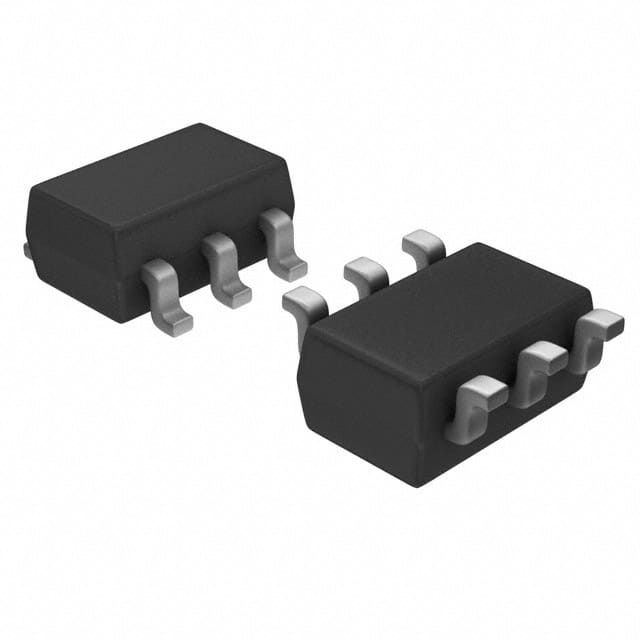

CPH6021-TL-H The CPH6021-TL-H is an NPN RF transistor from On Semiconductor. It features a 12V collector-emitter breakdown voltage, 100mA collector current, and a transition frequency of 10GHz.
Mfr Part #:

CPH6021-TL-H

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The CPH6021-TL-H is an NPN RF transistor from On Semiconductor. It features a 12V collector-emitter breakdown voltage, 100mA collector current, and a transition frequency of 10GHz.
✓ Total Stock: 96,000 pcs
$ Price Range: $0.11

CPH6021-TL-H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
96,000 pcs
On Request
96000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CPH6021-TL-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Gain
Halogen Free
Mounting Type
Noise Figure (dB Typ @ f)
Operating Temperature
Power
Storage Temperature
Supplier Device Package
Tape & Reel
Transistor Type
Voltage
View Similar Products (0)

CPH6021-TL-H Description

Short technical summary and product information.

The CPH6021-TL-H is an NPN RF transistor designed for low-noise, high-frequency applications. It offers a collector-emitter breakdown voltage of 12V and a collector current of 100mA. The device features a high transition frequency of 10GHz typical and a forward transfer gain of 14dB at 1GHz. The noise figure is typically 1.2dB at 1GHz, making it suitable for RF amplifier stages. The transistor is housed in a CPH6 surface-mount package (also known as SC-74, SOT-26, SOT-457) and is supplied in tape and reel packaging with 3000 pieces per reel. It is RoHS compliant and halogen free.

CPH6021-TL-H Quick Information

Product Type: RF Transistor
Canonical Name: CPH6021-TL-H NPN RF Transistor
Subcategory: NPN RF Transistor

CPH6021-TL-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

CPH6021-TL-H Estimated Pricing

Qty Low High
6,000+ $0.11 $0.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

CPH6021-TL-H Features

  • High transition frequency of 10GHz typical.
  • Low noise figure of 1.2dB at 1GHz.
  • High forward transfer gain of 14dB at 1GHz.
  • Surface-mount CPH6 package.
  • RoHS compliant and halogen free.

CPH6021-TL-H Applications

  • Ideal for low-noise RF amplifier stages.
  • Suitable for high-frequency oscillator circuits.
  • Used in wireless communication systems.
  • Applicable in RF signal processing modules.

CPH6021-TL-H FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the CPH6021-TL-H?

The collector-emitter breakdown voltage (VCEO) is 12V maximum, collector-base (VCBO) is 20V, and emitter-base (VEBO) is 2V.

What package is the CPH6021-TL-H available in?

It is available in a CPH6 surface-mount package, also known as SC-74, SOT-26, or SOT-457.

What is the operating temperature range?

The junction temperature maximum is 150°C, and storage temperature range is -55°C to +150°C.

Is the CPH6021-TL-H RoHS compliant?

Yes, it is RoHS3 compliant (Pb free) and halogen free.

What is the DC current gain of the CPH6021-TL-H?

The DC current gain (hFE) is 60 to 150 at VCE=5V, IC=50mA.

What is the transition frequency?

The transition frequency (fT) is 8 to 10 GHz at VCE=5V, IC=30mA.
