| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54,000 pcs
|
54000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base - Emitter Saturation Voltage | |
| Base Current | |
| Collector Current (Pulse) | |
| Collector-Base Breakdown Voltage | |
| Collector-Emitter Breakdown Voltage | |
| Collector-Emitter Saturation Voltage (1) | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Emitter-Base Breakdown Voltage | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Output Capacitance | |
| Packing Type | |
| Power | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |
The CPH3223-TL-E is a single NPN bipolar junction transistor from On Semiconductor designed for medium-power switching applications. It features a minimum collector-emitter breakdown voltage of 50 V at 1 mA with the base open, a collector-base breakdown voltage of 100 V, and an emitter-base breakdown voltage of 6 V. Continuous collector current rating is 3 A with a 6 A pulse capability, and base current rating is 600 mA.
The device delivers low collector-emitter saturation voltage: 90 mV typical/130 mV max at 1 A with 50 mA base current, and 160 mV typical/240 mV max at 2 A with 100 mA base current. DC current gain ranges from a minimum of 200 to a maximum of 560 at 2 V collector-emitter and 100 mA collector current. Transition frequency is typically 380 MHz at Vce=10 V and Ic=500 mA, making the part suitable for high-speed switching.

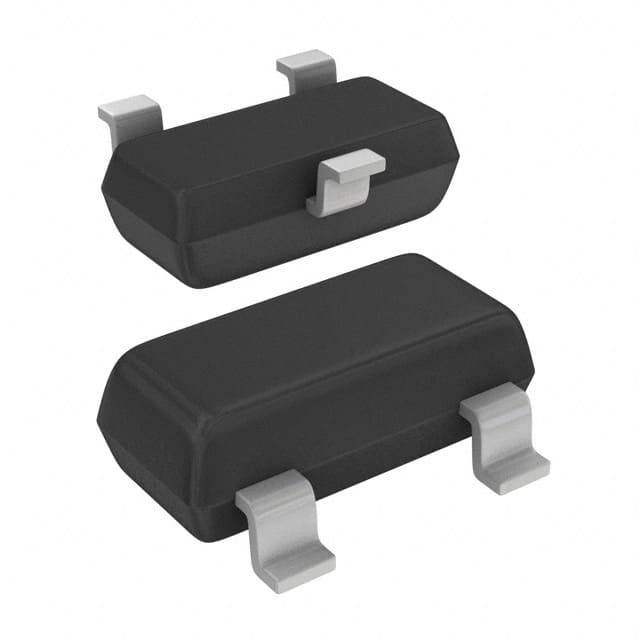

Maximum power dissipation is 900 mW when mounted on a 600 mm² x 0.8 mm ceramic substrate. Junction temperature rating is 150°C, and storage temperature range is -55°C to +150°C. The CPH3223-TL-E is offered in a compact CPH3 package (SC-59 / TO-236 / SOT-23) with surface-mount mounting, supplied in tape-and-reel packaging with 3,000 pieces per reel. Typical applications include DC-DC converters, relay drivers, lamp drivers, and motor drivers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.49 | $0.49 |
| 100+ | $0.32 | $0.32 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum V(BR)CEO is 50 V at Ic=1 mA with the base open.
Continuous collector current is 3 A; pulse collector current is 6 A. Base current rating is 600 mA.
DC current gain ranges from 200 to 560 at Vce=2 V and Ic=100 mA.
It is supplied in a CPH3 surface-mount package, which corresponds to JEITA/JEDEC designations SC-59, TO-236, and SOT-23. The database also lists the package as SC-96.
The junction temperature rating is 150°C, and the storage temperature range is -55°C to +150°C.
VCE(sat) is 90 mV typical / 130 mV max at 1 A with 50 mA base current, and 160 mV typical / 240 mV max at 2 A with 100 mA base current.
The existing database lists the CPH3223-TL-E as RoHS3 compliant, but this is unverified and rated low confidence, so confirm compliance with the supplier.
