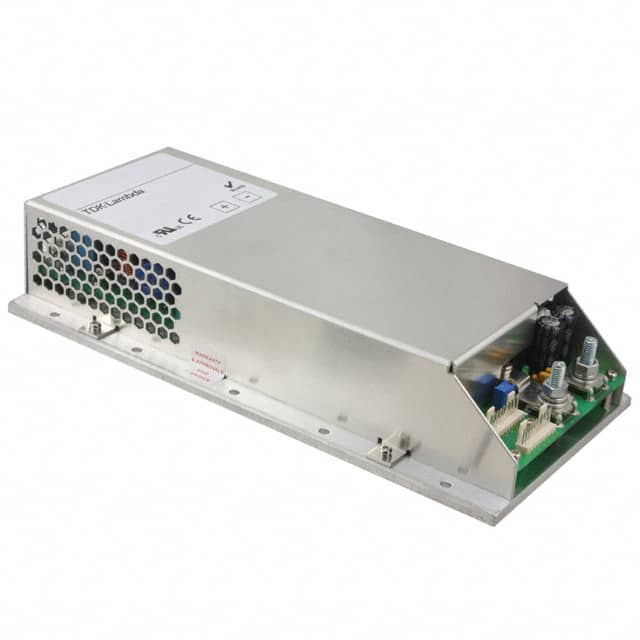

CPFE500F-48-NN-C The TDK Corporation CPFE500F-48-NN-C is a 500W AC/DC converter with a 48V output voltage and 10.5A maximum current. It features universal input and baseplate cooling.
Mfr Part #:

CPFE500F-48-NN-C

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation CPFE500F-48-NN-C is a 500W AC/DC converter with a 48V output voltage and 10.5A maximum current. It features universal input and baseplate cooling.
Stock on Request

CPFE500F-48-NN-C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Input Frequency
Input Voltage
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Power
Power (Watts)
Turn On Time
Type
Voltage

CPFE500F-48-NN-C Description

Short technical summary and product information.

The TDK Corporation CPFE500F-48-NN-C is a 500W AC/DC power supply designed for reliable operation in demanding environments. It features a universal input voltage range of 90-265 VAC and provides a stable 48V output at 10.5A.



This series is baseplate cooled, eliminating the need for a fan and ensuring quiet operation and longer field life. Key electrical specifications include a typical efficiency of 85%, power factor of 0.95, and a wide operating temperature range of -40°C to 85°C. The unit is enclosed and features a conformal coating for added protection.



Designed for various applications including outdoor electronics, LED signage, and rugged environments, the CPFE500F-48-NN-C offers features such as adjustable output, load sharing, remote on/off, and remote sense. Its dimensions are 264.0mm x 126.0mm x 54.5mm, and it is designed for chassis mounting.



Safety approvals include CE marking, and the product is RoHS3 compliant. The power supply is suitable for ITE (Commercial) applications.

CPFE500F-48-NN-C Quick Information

Product Type: AC DC Converter
Series: CPFE500F
Canonical Name: TDK Corporation CPFE500F Series AC-DC Power Supply
Subcategory: AC DC Converters

CPFE500F-48-NN-C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free / RoHS Compliant

CPFE500F-48-NN-C Features

  • 500W AC/DC converter with 48V output.
  • Baseplate cooled for fanless operation.
  • Universal input voltage range (90-265 VAC).
  • Wide operating temperature: -40°C to 85°C.
  • RoHS3 compliant and conformal coated.

CPFE500F-48-NN-C Applications

  • Ideal for industrial automation control systems.
  • Suitable for telecommunications base station power.
  • Used in medical equipment power supplies.
  • Designed for rack-mounted server infrastructure.
  • Applied in renewable energy inverter stages.

CPFE500F-48-NN-C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the CPFE500F-48-NN-C?

The output voltage is 48V.

What is the maximum output current for the CPFE500F-48-NN-C?

The maximum output current is 10.5A.

What is the input voltage range for this AC/DC converter?

The input voltage range is 90-265 VAC.

What is the operating temperature range of the CPFE500F-48-NN-C?

The operating temperature range is -40°C to 85°C.

What type of cooling does the CPFE500F-48-NN-C use?

It uses baseplate cooling and is fanless.

What are the dimensions of the CPFE500F-48-NN-C?

The dimensions are 264.0mm x 126.0mm x 54.5mm.
