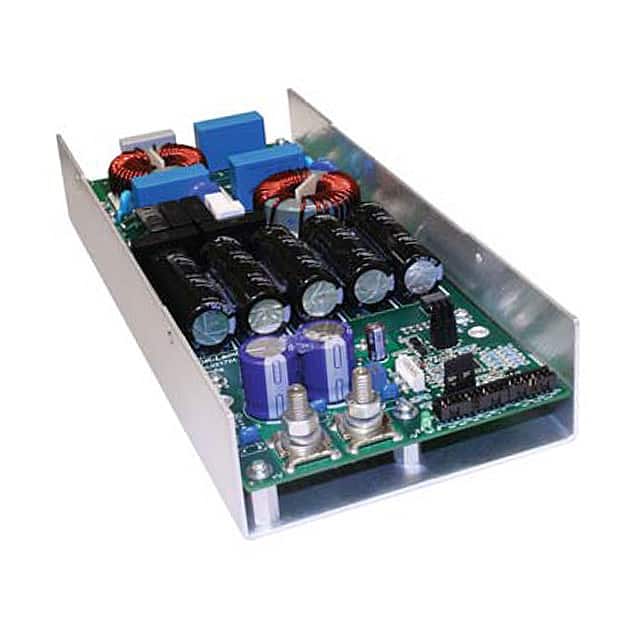

CPFE1000FI-48 The TDK Corporation CPFE1000FI-48 is a 1000W AC/DC converter with a 48V output. It features an open frame design and chassis mount.
Mfr Part #:

CPFE1000FI-48

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation CPFE1000FI-48 is a 1000W AC/DC converter with a 48V output. It features an open frame design and chassis mount.
Stock on Request

CPFE1000FI-48 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

CPFE1000FI-48 Description

Short technical summary and product information.

This TDK Corporation CPFE1000FI-48 is a high-power AC/DC converter designed for ITE (Commercial) applications. It delivers 1000W of power with a 48V output voltage.



The converter features an open frame construction and is designed for chassis mounting. Key features include adjustable output, baseplate cooling, I²C™ interface, load sharing, remote on/off, remote sense, and a standby output. It operates within a temperature range of -40°C to 85°C with derating.



With dimensions of 254.0mm x 112.0mm x 43.0mm, this unit provides a robust power solution. It has received CB and CE approval agency certifications.

CPFE1000FI-48 Quick Information

Product Type: AC DC Converter
Canonical Name: TDK Corporation CPFE1000FI-48 AC/DC Converter

CPFE1000FI-48 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CPFE1000FI-48 Features

  • 1000W AC/DC converter with 48V output.
  • Open frame design for chassis mounting.
  • Wide operating temperature range: -40°C to 85°C.
  • Features I²C™ interface and load sharing.
  • Approved by CB and CE.

CPFE1000FI-48 Applications

  • Used in commercial ITE power systems.
  • Suitable for baseplate-cooled chassis mount designs.
  • Supports remote on/off and load sharing applications.
  • Ideal for systems requiring adjustable output voltage.
  • Operates in wide temperature range environments.

CPFE1000FI-48 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output power rating?

1000W.

What is the output current rating?

21A.

What is the operating temperature range?

-40°C to 85°C with derating.

What is the mounting type?

Chassis mount.

What are the physical dimensions?

254.0 mm (L) x 112.0 mm (W) x 43.0 mm (H).

What is the rated voltage?

4.242 kV.
