| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines |

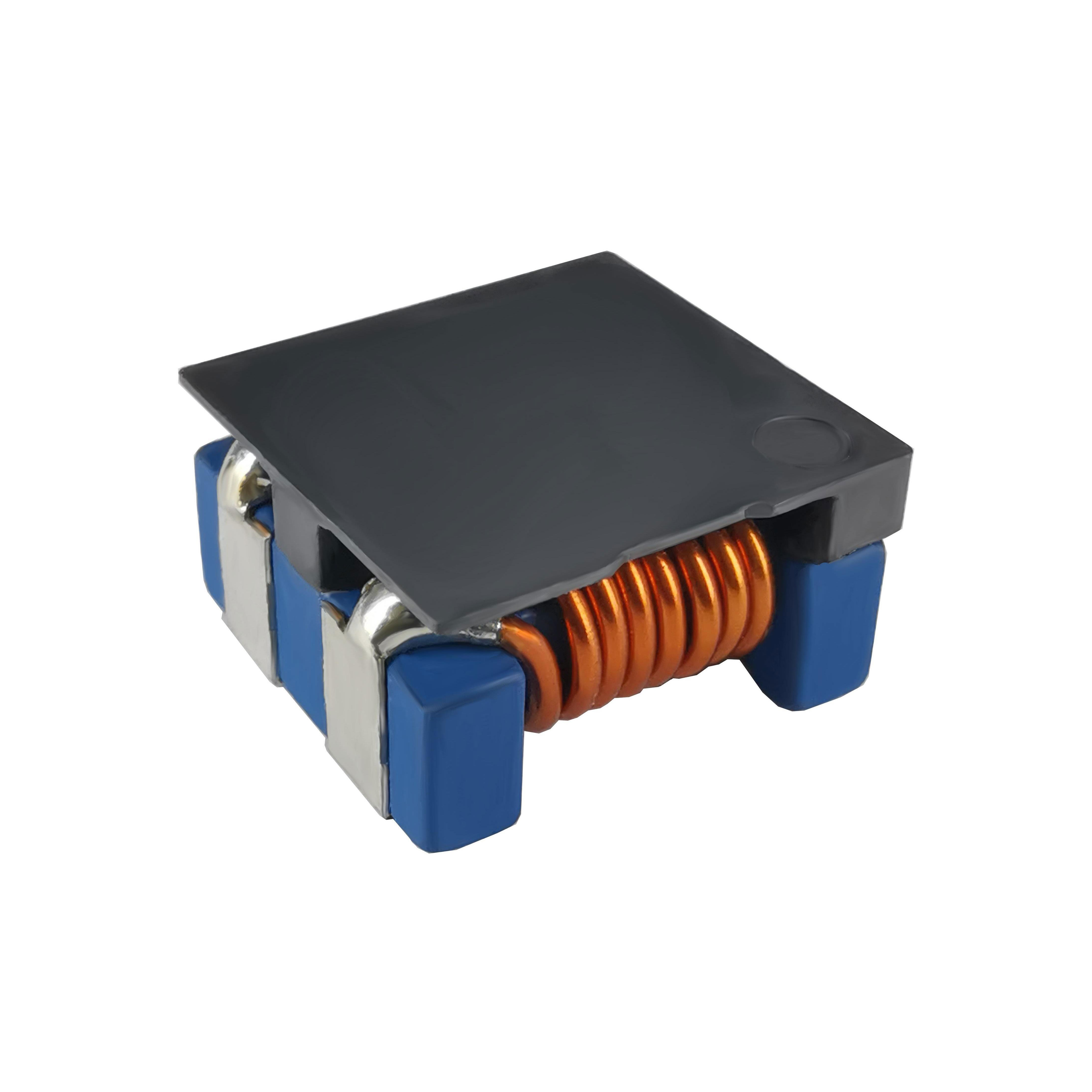

The CPFC11D60-100M08 is a surface mount common mode choke from Sumida Corporation's CPFC series. It is designed for power line filtering applications, featuring two lines with a minimum impedance of 800 Ohms (typical 1265 Ohms) at 100 MHz. The component is rated for a maximum current of 6A and has a maximum DC resistance of 8 mOhm. The package is a horizontal 4 PC pad configuration with dimensions 12.80 mm x 11.70 mm x 6.50 mm. It is RoHS compliant and suitable for medical and automotive applications as noted in the datasheet.
| Qty | Low | High |
|---|---|---|
| 400+ | $2.20 | $2.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Horizontal, 4 PC Pad.
Yes, it is RoHS3 compliant.
800 Ohms minimum, 1265 Ohms typical at 100 MHz.
6A maximum.
8 mOhm maximum.
Surface mount.
2 lines.
