| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

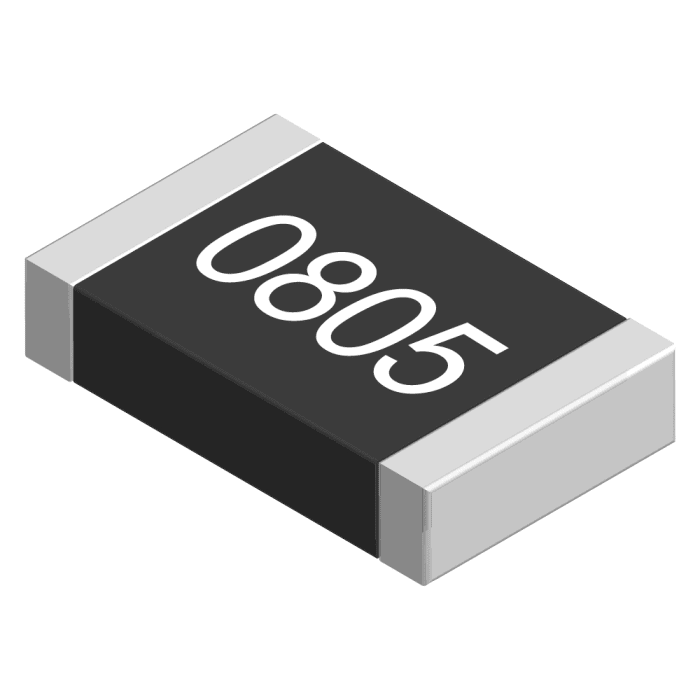

The TE Connectivity CPF0805B22KE is a precision thin film surface mount resistor designed for high stability and accuracy. It features a resistance value of 22 kΩ with a tight tolerance of ±0.1% and a power rating of 0.1W.
This resistor operates within a wide temperature range of -55°C to +155°C, with a temperature coefficient of ±25 ppm/°C. The component is housed in a standard 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.65mm. Its surface mount design with solder terminations ensures easy integration into PCB layouts.
Suitable for applications requiring precise resistance values, such as communications, industrial controls, instrumentation, and medical devices, the CPF0805B22KE offers reliable performance. It is supplied in tape and reel packaging for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 kΩ.
The tolerance is ±0.1%.
The power rating is 0.1W.
The operating temperature range is -55°C to +155°C.
The package size is 0805.
The temperature coefficient is ±25 ppm/°C.
