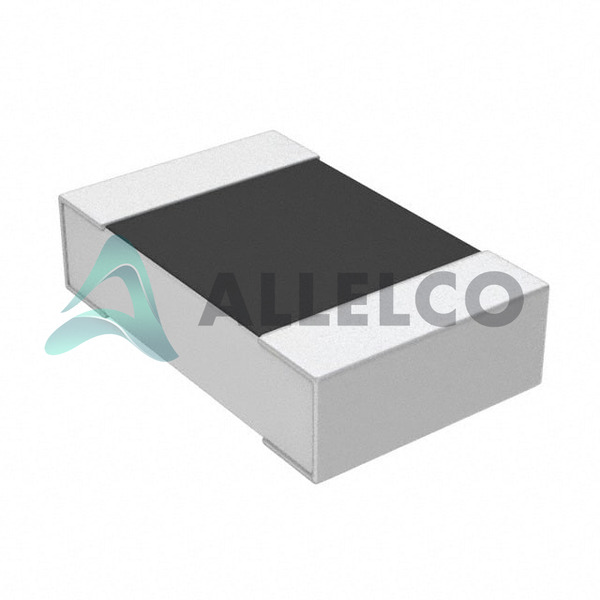

CPF0805B200RE1 The TE Connectivity CPF0805B200RE1 is a surface mount chip resistor with 200 Ohms of resistance and a tolerance of ±0.1%. It is rated for 0.1W of power.
Mfr Part #:

CPF0805B200RE1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CPF0805B200RE1 is a surface mount chip resistor with 200 Ohms of resistance and a tolerance of ±0.1%. It is rated for 0.1W of power.
✓ Total Stock: 1,951 pcs
$ Price Range: $0.05

CPF0805B200RE1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,951 pcs
On Request
1951 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CPF0805B200RE1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Supplier Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CPF0805B200RE1 Description

Short technical summary and product information.

This TE Connectivity CPF0805B200RE1 is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 200 Ohms with a tight tolerance of ±0.1%, ensuring precise circuit performance.



The resistor has a power rating of 0.1W (1/10W) and a temperature coefficient of ±25ppm/°C, operating within a temperature range of -55°C to 155°C. Its construction is thin film, housed in an 0805 (2012 Metric) package.



The component measures 2.00mm in length and 1.25mm in width, with a height of 0.65mm. It has two terminations and is suitable for surface mounting.



This part is identified by its manufacturer part number CPF0805B200RE1 and is manufactured by TE Connectivity. It is categorized as a Chip Resistor - Surface Mount.

CPF0805B200RE1 Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: TE Connectivity CPF0805B200RE1 Thin Film Resistor
Subcategory: Chip Resistor - Surface Mount

CPF0805B200RE1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CPF0805B200RE1 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CPF0805B200RE1 Features

  • 200 Ohm resistance with ±0.1% tolerance.
  • 0.1W power rating in 0805 package.
  • Wide operating temperature range.
  • Thin film construction for stability.
  • Compact 0805 (2012 Metric) size.

CPF0805B200RE1 Applications

  • Suitable for precision circuits.
  • Used in general electronic assemblies.
  • Ideal for SMT applications.
  • Component for signal conditioning.

CPF0805B200RE1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CPF0805B200RE1 resistor?

The resistance value is 200 Ohms.

What is the tolerance of the TE Connectivity CPF0805B200RE1 resistor?

The tolerance is ±0.1%.

What is the power rating for the CPF0805B200RE1?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size is the CPF0805B200RE1 resistor in?

It is in the 0805 (2012 Metric) package size.
