| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

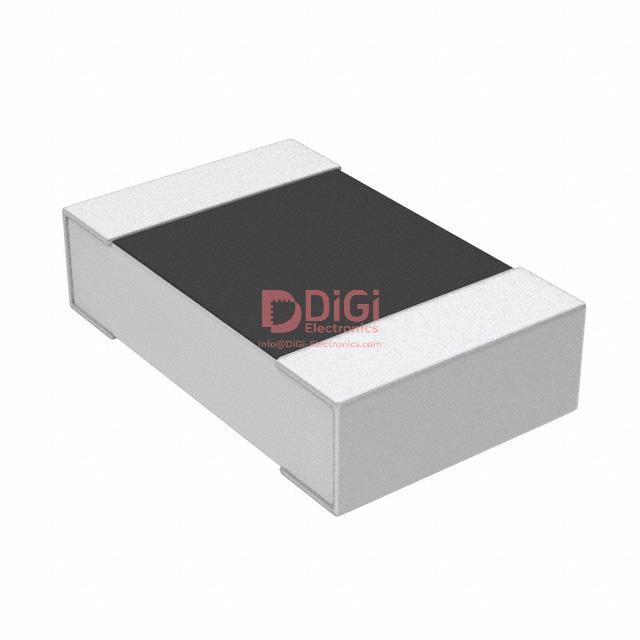

This TE Connectivity CPF0805B120KE1 is a surface mount chip resistor designed for various electronic applications. It offers a precise resistance value of 120 kOhms with a tight tolerance of ±0.1%, making it suitable for applications requiring accuracy.
The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C. Its construction is thin film, contributing to its stability and performance. The component is housed in a compact 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.65mm.
Designed for surface mounting, this component is supplied in Tape & Reel packaging. The operating temperature range and precise electrical characteristics make it a reliable choice for circuit designs where space and performance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the CPF0805B120KE1 resistor is 120 kOhms.
The tolerance of the CPF0805B120KE1 resistor is ±0.1%.
The power rating for the CPF0805B120KE1 chip resistor is 0.1W, or 1/10W.
The operating temperature range for this resistor is -55°C to 155°C.
The CPF0805B120KE1 resistor is in an 0805 (2012 Metric) package.
The temperature coefficient of this resistor is ±25ppm/°C.
