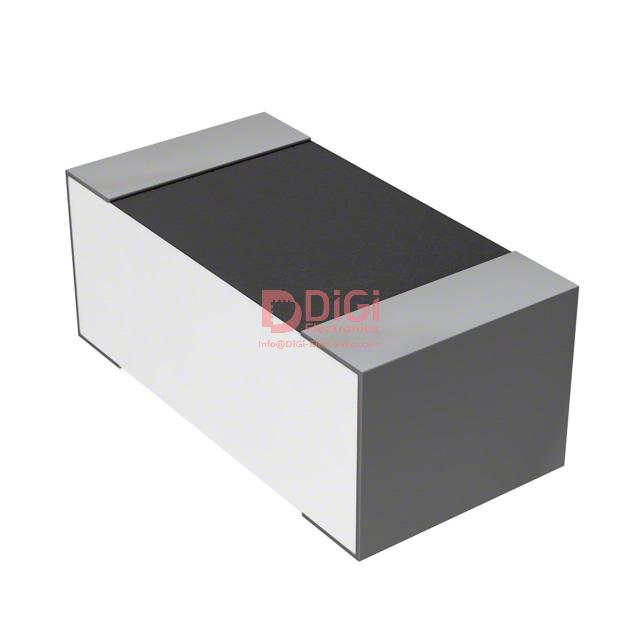

CPF0603F100RC1 The TE Connectivity CPF0603F100RC1 is a surface mount chip resistor with a resistance of 100 Ohms and a tolerance of ±1%. It has a power rating of 1/16W and comes in an 0603 package.
Mfr Part #:

CPF0603F100RC1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CPF0603F100RC1 is a surface mount chip resistor with a resistance of 100 Ohms and a tolerance of ±1%. It has a power rating of 1/16W and comes in an 0603 package.
✓ Total Stock: 32 pcs
$ Price Range: $0.05

CPF0603F100RC1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CPF0603F100RC1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Duration
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CPF0603F100RC1 Description

Short technical summary and product information.

This TE Connectivity CPF0603F100RC1 is a thin film chip resistor designed for surface mount applications. It offers a resistance value of 100 Ohms with a tight tolerance of ±1%. The component is rated for 1/16W of power and operates within a temperature range of -55°C to 155°C.



The resistor features a standard 0603 (1608 Metric) package size, measuring 1.55mm in length and 0.80mm in width. Its thin film composition ensures reliable performance. The operating temperature coefficient is ±50ppm/°C.



This part is suitable for various electronic circuits requiring precise resistance values in a compact form factor. Its surface mount capability allows for automated assembly processes.

CPF0603F100RC1 Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: TE Connectivity CPF0603F100RC1 Thin Film Chip Resistor 100 Ohm ±1% 1/16W 0603
Subcategory: Surface Mount

CPF0603F100RC1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CPF0603F100RC1 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CPF0603F100RC1 Features

  • 100 Ohm resistance with ±1% tolerance.
  • Rated for 1/16W power dissipation.
  • Thin film composition for stability.
  • 0603 package for surface mounting.
  • Wide operating temperature range.

CPF0603F100RC1 Applications

  • General purpose signal conditioning.
  • Power supply filtering circuits.
  • Automotive electronics applications.
  • Consumer electronic devices.
  • Industrial control systems.

CPF0603F100RC1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of this resistor?

The resistance value is 100 ohms.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of this resistor?

The power rating is 0.063W (1/16W).

What is the operating temperature range?

The operating temperature range is from -55°C to 155°C.

What package size does this resistor use?

It uses a 0603 (1608 metric) package.

Is this resistor RoHS compliant?

It is RoHS3 compliant.
