| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

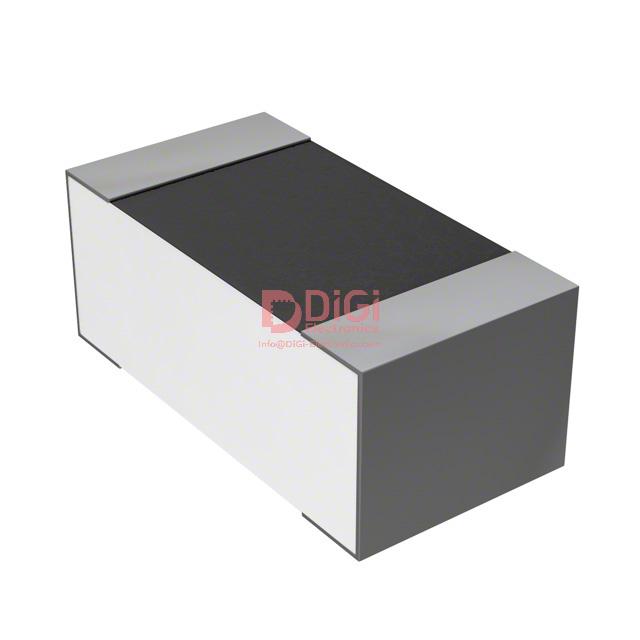

This TE Connectivity CPF0603B240RE1 is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 240 Ohms with a precise tolerance of ±0.1%, ensuring accuracy in circuit performance.
The resistor has a power rating of 0.063W, or 1/16W, making it suitable for low-power applications. It operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C, indicating stability under varying thermal conditions.
Packaged in an industry-standard 0603 (1608 Metric) case, this component is designed for surface mounting. Its dimensions are approximately 1.55mm in length and 0.80mm in width, with a height of 0.55mm. The thin film composition contributes to its reliable performance.
This part is supplied in Tape & Reel packaging, facilitating automated assembly processes. It is suitable for applications requiring accurate resistance values and stable performance in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 240 Ohms.
The tolerance is ±0.1%.
The power rating is 0.063W, or 1/16W.
The operating temperature range is -55°C to 155°C.
The package size is 0603 (1608 Metric).
