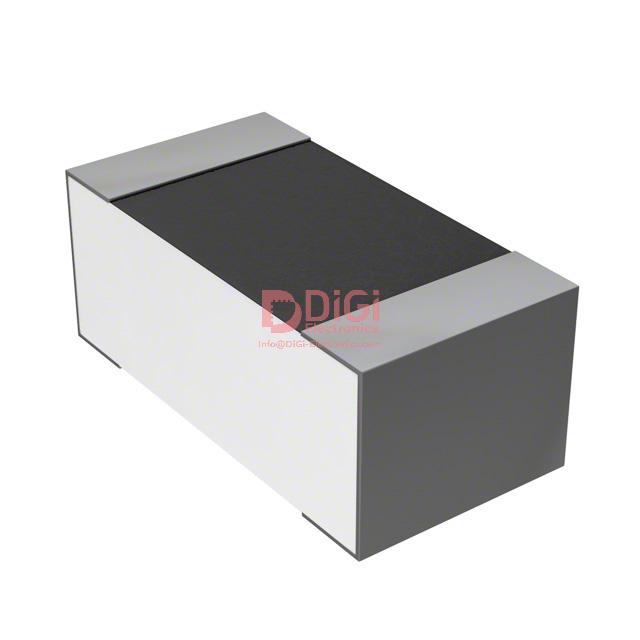

CPF0603B22RE The TE Connectivity CPF0603B22RE is a surface mount chip resistor with a resistance of 22 Ohms and a tolerance of ±0.1%. It has a power rating of 0.063W (1/16W).
Mfr Part #:

CPF0603B22RE

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity CPF0603B22RE is a surface mount chip resistor with a resistance of 22 Ohms and a tolerance of ±0.1%. It has a power rating of 0.063W (1/16W).
✓ Total Stock: 5,066 pcs
$ Price Range: $0.05

CPF0603B22RE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CPF0603B22RE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CPF0603B22RE Description

Short technical summary and product information.

This TE Connectivity CPF0603B22RE is a surface mount chip resistor belonging to the CPF series. It offers a precise resistance value of 22 Ohms with a tight tolerance of ±0.1%. The component is rated for 0.063W (1/16W) of power and features a thin film composition.



Designed for surface mounting, this resistor comes in an industry-standard 0603 (1608 Metric) package. Its operating temperature range is -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. The dimensions are 1.55mm in length and 0.80mm in width.



This part is suitable for various electronic applications requiring accurate resistance values in a compact form factor. The tape and reel packaging is standard for automated assembly processes.

CPF0603B22RE Quick Information

Product Type: Chip Resistor - Surface Mount
Series: CPF, Neohm
Canonical Name: TE Connectivity CPF0603B22RE Chip Resistor - Surface Mount
Subcategory: Surface Mount

CPF0603B22RE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CPF0603B22RE Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CPF0603B22RE Features

  • 22 Ohm resistance with ±0.1% tolerance.
  • 0.063W power rating.
  • Thin film composition.
  • 0603 (1608 Metric) package size.
  • Wide operating temperature range.

CPF0603B22RE Applications

  • Suitable for precision resistor networks in circuits.
  • Used in temperature-sensitive electronic applications.
  • Ideal for surface-mount resistor replacements.
  • Applicable in high-temperature environments up to 155°C.
  • Suitable for compact electronic device designs.

CPF0603B22RE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CPF0603B22RE?

The resistance value is 22 Ohms.

What is the tolerance of the TE Connectivity CPF0603B22RE resistor?

The tolerance is ±0.1%.

What is the power rating for the CPF0603B22RE?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the CPF0603B22RE resistor?

The package size is 0603 (1608 Metric).
