| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

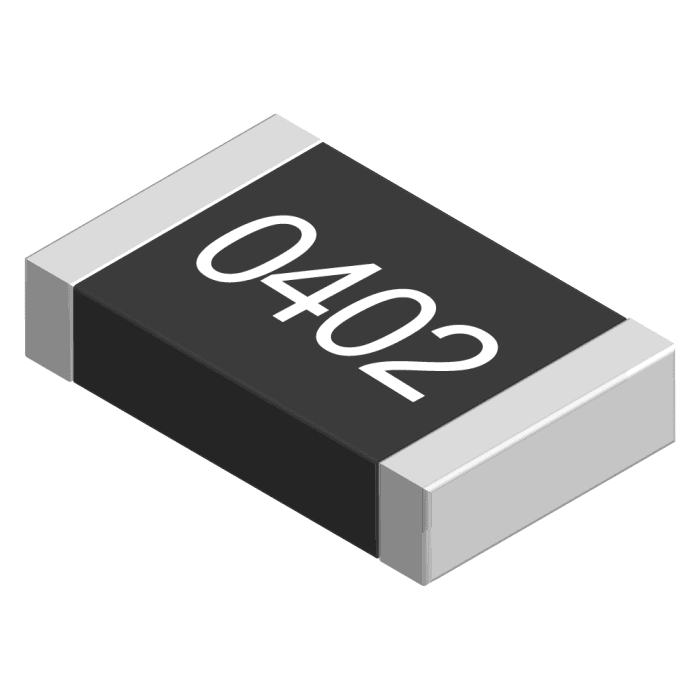

This TE Connectivity CPF0402B6K8E1 is a precision thin film surface mount resistor designed for high stability and accuracy. It features a resistance value of 6.8 kΩ with a tight tolerance of ±0.1%, making it suitable for applications requiring precise current control.
The resistor has a power rating of 0.063W (1/16W) and operates within a temperature range of -55°C to +155°C. Its compact 0402 package size (1.00mm x 0.50mm) and surface mount termination style allow for easy integration into dense PCB designs.
Constructed with a Nichrome resistor layer on an alumina substrate and featuring an electroplated tin finish, this component offers reliable performance. The CPF series is ideal for applications in communications, industrial controls, instrumentation, and medical devices where precision and stability are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 6.8 kΩ.
The tolerance is ±0.1%.
The power rating is 0.063W.
The operating temperature range is -55°C to +155°C.
The package size is 0402.
The temperature coefficient is ±25 ppm/°C.
