| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

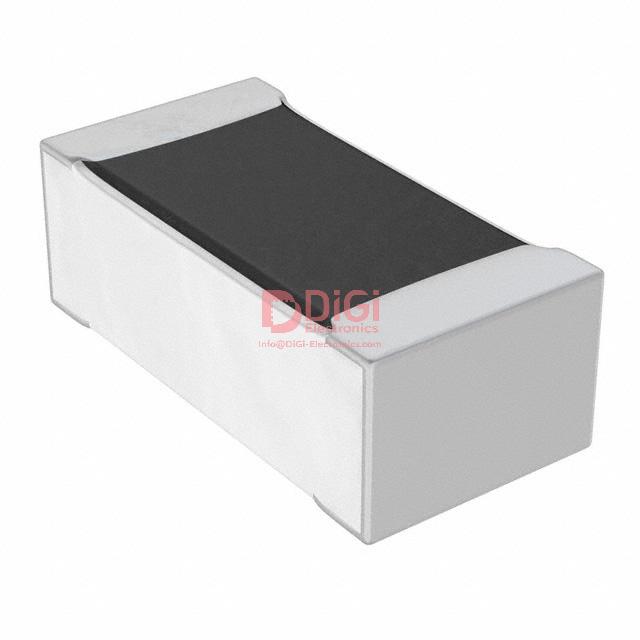

This TE Connectivity CPF0402B15K8E1 is a surface mount chip resistor designed for various electronic applications. It features a precise resistance value of 15.8 kOhms with a tight tolerance of ±0.1%, ensuring accuracy in circuit performance.
The resistor has a power rating of 0.063W (1/16W) and is constructed with thin film technology. It operates within a wide temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C.
The component comes in a compact 0402 (1005 Metric) package, suitable for high-density circuit board designs. Its dimensions are approximately 1.00mm in length and 0.50mm in width, with a height of 0.35mm. The 0402 package size and surface mount termination style make it ideal for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 15.8 kOhms.
The tolerance is ±0.1%.
The power rating is 0.063W, or 1/16W.
The operating temperature range is -55°C to 155°C.
The resistor is in a 0402 (1005 Metric) package.
The temperature coefficient is ±25ppm/°C.
