| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 1614+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

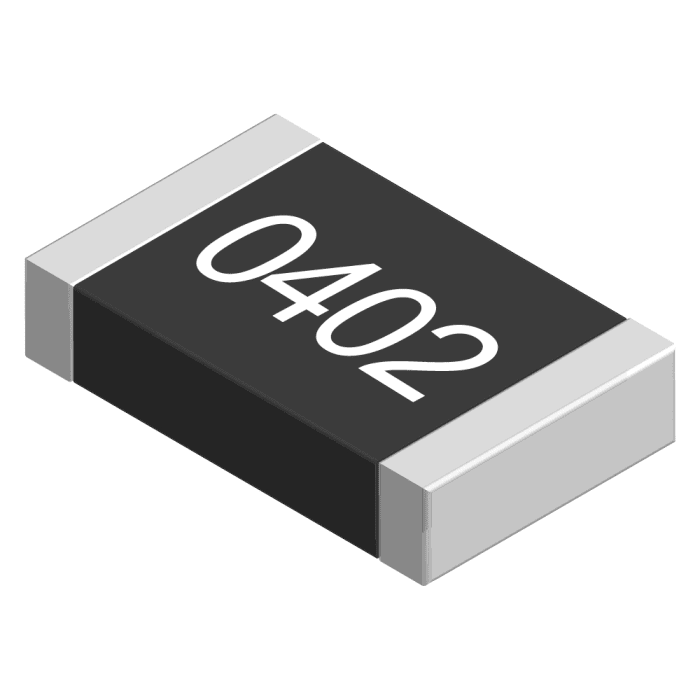

The TE Connectivity CPF0402B100RE is a precision thin film surface mount resistor designed for high stability and accuracy. It features a resistance value of 100 Ohms with a tight tolerance of ±0.1% and a power rating of 0.063W.
Constructed with a Nichrome resistor layer on an alumina substrate, this resistor offers a wide operating temperature range from -55°C to 155°C and a temperature coefficient of ±25ppm/°C. The 0402 package size (1.00mm x 0.50mm) with a height of 0.35mm makes it suitable for automated placement on PCBs.
Suitable applications for the CPF series precision resistors include communications, industrial controls, instrumentation, and medical applications. The component is supplied in tape and reel packaging, facilitating efficient manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The tolerance is ±0.1%.
The power rating is 0.063W.
The operating temperature range is -55°C to 155°C.
The package type is 0402.
The temperature coefficient is ±25ppm/°C.
