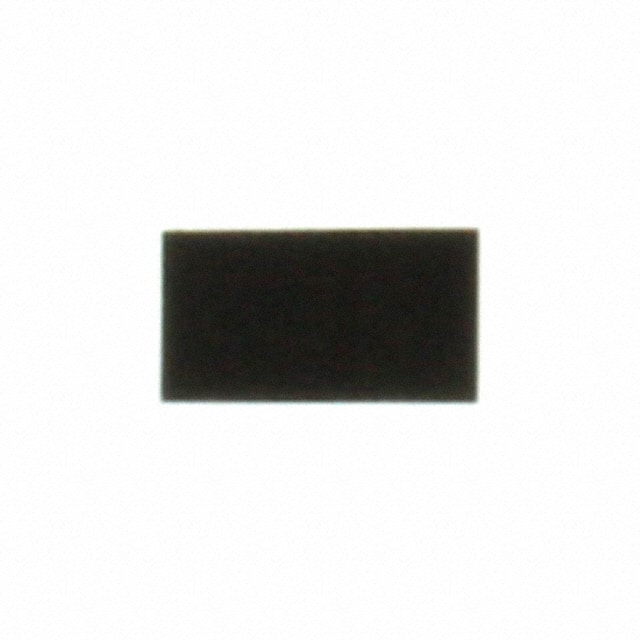

CPDU12V0U The CPDU12V0U is a unidirectional TVS diode from Comchip Technology with a 12V reverse standoff voltage and 24V breakdown voltage. It offers 5A peak pulse current (8/20µs) and 120W peak pulse power in a 0603/SOD-523F surface mount package.
Mfr Part #:

CPDU12V0U

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
The CPDU12V0U is a unidirectional TVS diode from Comchip Technology with a 12V reverse standoff voltage and 24V breakdown voltage. It offers 5A peak pulse current (8/20µs) and 120W peak pulse power in a 0603/SOD-523F surface mount package.
✓ Total Stock: 1 pcs

CPDU12V0U Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CPDU12V0U Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Capacitance @ Frequency
Current
Mounting Type
Package / Case
Power
Power Line Protection
Supplier Device Package
Tape & Reel
Type
Unidirectional Channels
Voltage
View Similar Products (0)

CPDU12V0U Description

Short technical summary and product information.

The CPDU12V0U is a unidirectional Zener TVS diode designed for general purpose circuit protection. It features a reverse standoff voltage of 12V and a breakdown voltage of 24V. The device can handle a peak pulse current of 5A under an 8/20µs waveform and delivers a peak pulse power of 120W. Typical capacitance is 60pF at 1MHz. This TVS diode is not intended for power line protection. It is housed in a 2-SMD, no lead package with a supplier device package of 0603/SOD-523F, making it suitable for surface mount assembly. The component is RoHS3 compliant and has a moisture sensitivity level of Level 1 (unlimited). Designed for general purpose applications, it provides reliable ESD and transient voltage suppression in space-constrained designs.

CPDU12V0U Quick Information

Product Type: TVS Diode
Canonical Name: TVS Diode, Unidirectional, 12V Reverse Standoff, 24V Breakdown, 0603/SOD-523F
Subcategory: Unidirectional TVS Diode

CPDU12V0U Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CPDU12V0U Features

  • 12V reverse standoff voltage rating.
  • 24V breakdown voltage specification.
  • 5A peak pulse current capability.
  • 120W peak pulse power handling.
  • 0603/SOD-523F surface mount package.

CPDU12V0U Applications

  • Used for ESD protection in portable electronics.
  • Suitable for general purpose circuit protection.
  • Ideal for space-constrained surface mount designs.
  • Provides transient voltage suppression in I/O lines.

CPDU12V0U FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage of the CPDU12V0U?

The reverse standoff voltage (VRWM) is 12V.

What is the breakdown voltage of the CPDU12V0U?

The breakdown voltage (VBR) is 24V.

What is the peak pulse current rating of the CPDU12V0U?

The peak pulse current (Ipp) is 5A under 8/20µs waveform.

What package does the CPDU12V0U come in?

It is available in a 2-SMD, no lead package with supplier device package 0603/SOD-523F.

What is the capacitance of the CPDU12V0U?

Typical capacitance is 60pF at 1MHz.

Is the CPDU12V0U suitable for power line protection?

No, it is not designed for power line protection.

What is the mounting type for the CPDU12V0U?

It is a surface mount device.
