| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
680 pcs
|
680 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

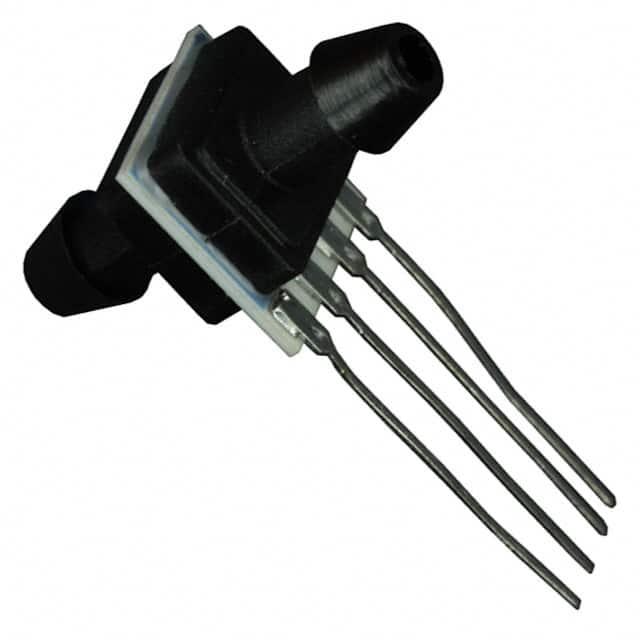

The Honeywell CPCL10DFC is a differential pressure sensor with a compact 4-SIP module package, suitable for through-hole mounting. It is designed for applications requiring precise pressure measurements within a range of 0.36PSI (2.49kPa) and up to a maximum of 5PSI (34.47kPa).
This sensor operates with a voltage supply from 3V to 16V and provides an output signal from a Wheatstone bridge, typically ranging from 0 mV to 20 mV at 12V. It features temperature compensation for enhanced accuracy, with an operating temperature range of -25°C to 85°C. The port size is 0.16" (4.06mm) dual barbed, designed for differential pressure measurements.
Key specifications include an accuracy of ±2% and a termination style of PC Pin, making it suitable for direct board mounting. The CPCL10DFC is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, indicating its suitability for various industrial and commercial applications where reliable pressure sensing is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range for the CPCL10DFC is 0.36PSI (2.49kPa).
The maximum pressure for the CPCL10DFC is 5PSI (34.47kPa).
The accuracy of the CPCL10DFC is ±2%.
The CPCL10DFC operates with a voltage range of 3V to 16V.
The operating temperature range for the CPCL10DFC is -25°C to 85°C.
The CPCL10DFC provides a Wheatstone bridge output, typically 0 mV to 20 mV (12V).
The CPCL10DFC is designed for through-hole mounting.
