| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

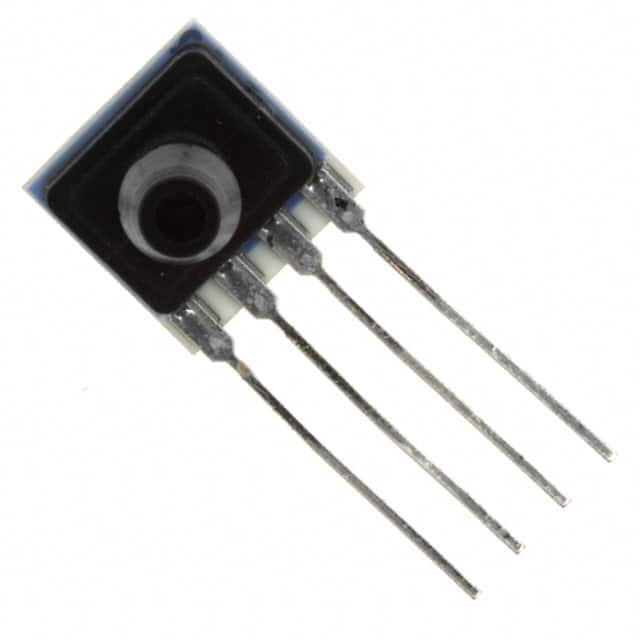

The Honeywell CPCL04GFC is a pressure sensor designed for board mounting applications. It operates within a pressure range of 0.15PSI to 3PSI, with an accuracy of ±2%. The sensor utilizes a Wheatstone Bridge output, providing a signal from 0 mV to 25 mV at 12V.
This device is temperature compensated and operates across a wide temperature range of -25°C to 85°C, with an input voltage requirement between 3V and 16V. The port size is 0.15" (3.8mm) tube with a barbed port style, and it features a PC Pin termination style.
The CPCL04GFC is housed in a 4-SIP module package and is designed for through-hole mounting. It is specified as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 0.15PSI (1kPa).
The maximum pressure is 3PSI (20.68kPa).
The accuracy is ±2%.
The output is a Wheatstone Bridge, providing 0 mV to 25 mV (12V).
The operating voltage is between 3V and 16V.
The operating temperature range is -25°C to 85°C.
It is designed for through-hole mounting.
