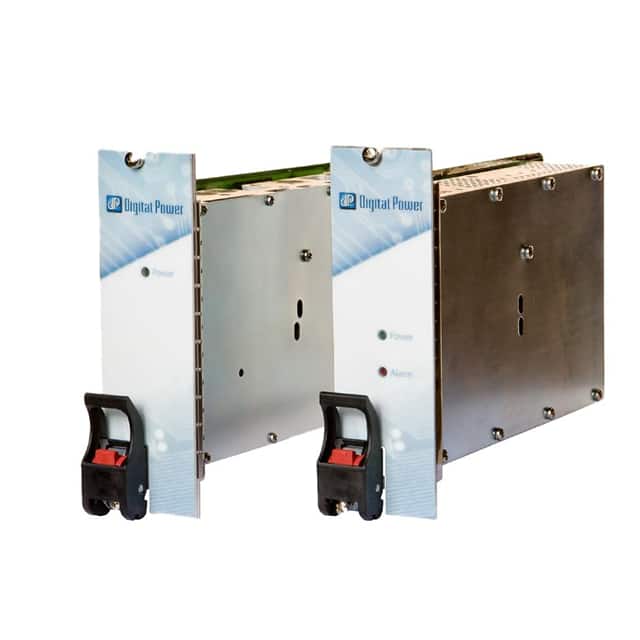

This CPCI-3U Series DC DC converter from Digital Power Corporation offers up to 286 Watts of power in an enclosed, Compact PCI form factor. It is designed for applications requiring multiple voltage outputs, including +5V at 25A, +3.3V at 36A, +12V at 3A, and -12V at 0.5A. The unit operates with an input voltage range of 18-36 VDC and boasts an efficiency of 82%.
With a 3U cabinet size, this power supply is suitable for harsh industrial and defense applications. It operates within a temperature range of -5°C to 70°C with derating and meets safety standards such as 60950-1. The dimensions are 169.4mm x 100.0mm x 40.6mm.
Key electrical specifications include a maximum output power of 286W and a high efficiency of 82%. The mounting type is Compact PCI, making it ideal for integration into specific system architectures. Approval agencies include CE and cURus.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18-36 VDC.
The output voltages are +5V, +3.3V, +12V, and -12V.
The maximum output power is 286W.
The efficiency is 82%.
The operating temperature range is -5°C to 70°C with derating.
The dimensions are 169.4mm x 100.0mm x 40.6mm.
It complies with standard 60950-1.
