| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

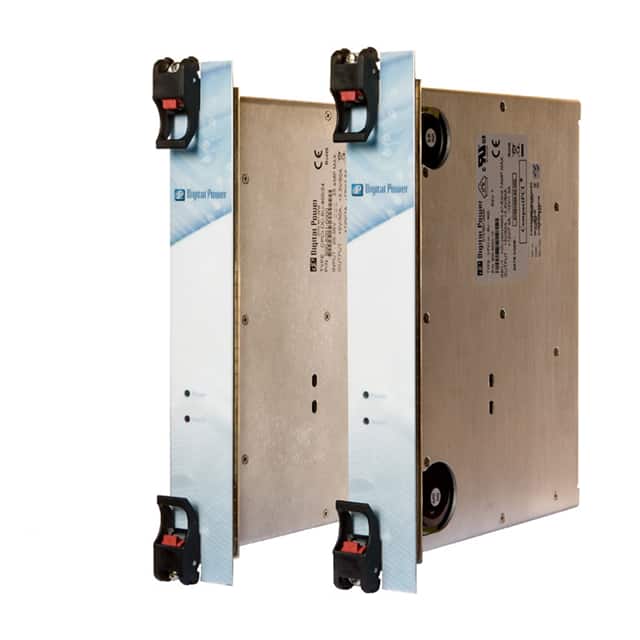

The Digital Power Corporation CPCI-AC-6U-600 is a high-performance AC/DC power supply designed for Compact PCI (CPCI) systems. This 6U unit delivers up to 683W of power and features a universal AC input range of 90-264V AC.
Key electrical specifications include four outputs: +5V at 70A, +3.3V at 70A, +12V at 12A, and -12V at 1.5A. The power supply supports features such as adjustable output, load sharing, power factor correction (PFC), remote on/off, remote sense, and universal input, making it suitable for demanding applications.
With an operating temperature range of -5°C to 70°C (with derating), the CPCI-AC-6U-600 is built for rugged environments. Its dimensions are 261.9mm in length, 169.6mm in width, and 40.3mm in height. The unit is compliant with PICMG 2.11, UL/cUL 60950-1, IEC/EN60950-1, and EN55022 Level B emissions standards.
The CPCI-AC-6U-600 accepts a universal AC input voltage range of 90-264V AC.
The CPCI-AC-6U-600 has four outputs: +5V at 70A, +3.3V at 70A, +12V at 12A, and -12V at 1.5A.
The CPCI-AC-6U-600 provides a total power output of 683W.
The operating temperature range is -5°C to 70°C, with derating applied.
The dimensions are 261.9mm in length, 169.6mm in width, and 40.3mm in height.
Yes, the CPCI-AC-6U-600 supports features including PFC and load sharing.
It is compliant with PICMG 2.11, UL/cUL 60950-1, IEC/EN60950-1, and EN55022 Level B emissions.
