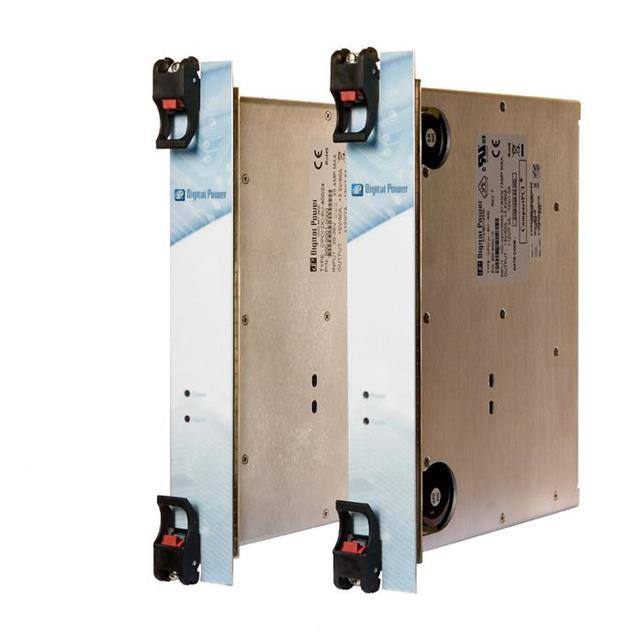

The Digital Power Corporation CPCI-AC-6U-500R is a ruggedized, military-grade Compact PCI power supply designed for harsh environment and military applications. It delivers up to 500 Watts of power with a universal AC input range of 90-264 VAC and includes Active Current Sharing and internal ORing FETs for redundant applications.
Key electrical specifications include a nominal +5V output at 65A (V1), +3.3V at 80A (V2), +12V at 12A (V3), and -12V at 1.5A (V4). The unit operates within a temperature range of -5°C to +55°C and features Power Factor Correction (PFC). It offers line regulation of ±0.5% maximum and load regulation of ±2% maximum, with ripple and noise specified at 50mV p-p for V1/V2 and 100mV p-p for V3/V4.
This power supply is compliant with PICMG 2.11 and carries safety approvals including UL/cUL 60950-1 and IEC/EN60950-1. It also meets EN55022 Level A emissions standards. The CPCI-AC-6U-500R is suitable for demanding applications such as shipboard, ground-based, and airborne systems.
Mounting is via the Compact PCI® standard. The unit is enclosed and features adjustable output, load sharing, PFC, remote on/off, remote sense, and universal input capabilities. Its ruggedized design enhances shock and vibration resistance, making it ideal for defense and harsh environment applications.
The maximum output power is 500W.
The input voltage range is 90-264 VAC.
The main outputs are +5V at 65A (V1) and +3.3V at 80A (V2).
The operating temperature range is -5°C to +55°C.
It is compliant with PICMG 2.11, UL/cUL 60950-1, IEC/EN60950-1, and EN55022 Level A.
It uses Compact PCI® mounting.
