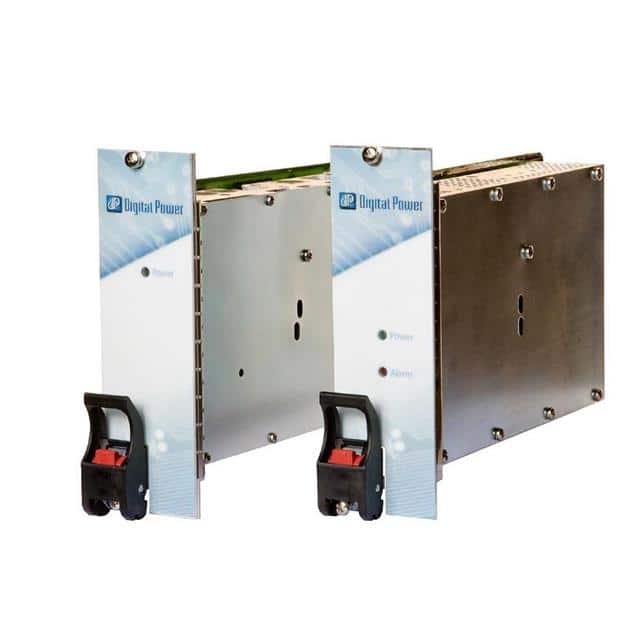

The CPCI-AC-3U-200R from Digital Power Corporation is a military-grade, ruggedized Compact PCI power supply designed for harsh environment and military applications. This AC DC converter delivers up to 241W of power and features a universal AC input range of 85-264 VAC.
It offers four outputs: +5V at 20A, +3.3V at 30A, +12V at 3A, and -12V at 0.5A. Key features include adjustable output, load sharing, power factor correction (PFC), remote on/off, and remote sense capabilities. The unit is compliant with PICMG 2.11 and meets safety standards like UL/cUL 60950-1 and IEC/EN 60950-1.
With a compact PCI mounting type, this enclosed converter measures 169.4mm x 100.0mm x 40.6mm. It operates within a temperature range of -5°C to 70°C with derating. The ruggedized design enhances shock and vibration resistance, making it suitable for demanding industrial and defense applications.
Universal AC input: 85-264 VAC; also accepts 36-72 VDC or 18-36 VDC inputs.
Compact PCI® (3U form factor).
-5°C to +70°C with derating, or -5°C to +55°C at full power with 250 LFM.
241W.
Four outputs: +5V/20A, +3.3V/30A, +12V/3A, and -12V/0.5A.
Adjustable output, load sharing, PFC, remote on/off, remote sense, universal input.
CE and cURus approved, compliant to standard 60950-1.
