| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Efficiency (Typical) | |
| Height | |
| Input Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple and Noise | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

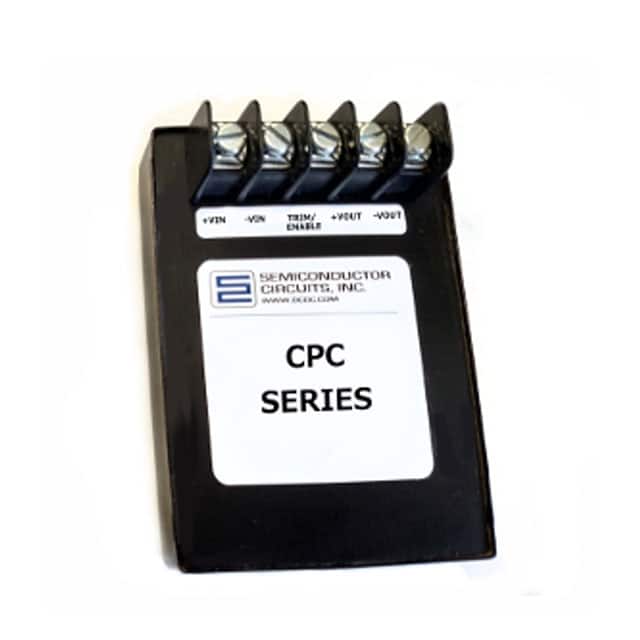

The Semiconductor Circuits, Inc. CPC4D18N is a high-performance DC DC converter designed for industrial applications. It offers a 24V output voltage and a maximum output current of 4A, delivering up to 96W of power.
This converter boasts a high efficiency of 91% and operates within an input voltage range of 9-36Vdc or 18-72Vdc. Key features include remote shutdown capability, undervoltage lockout with hysteresis, and an operating temperature range of -40°C to +85°C.
Designed for chassis mounting, the CPC4D18N features a rugged construction with screw terminals for I/O connections. Its dimensions are 88.9mm x 63.5mm x 38.1mm. This converter is suitable for applications in industrial settings, transportation, electric vehicles, and solar power systems where printed circuit board mounting is not feasible.
Additional specifications include an isolation voltage of 2.25 kV and a ripple and noise level of 100mV P-P. The part is classified as ITE (Commercial) for its applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24V.
The maximum output current is 4A.
The power rating is 96W.
The efficiency is 91%.
The operating temperature range is -40°C to +85°C.
It uses chassis mount.
