| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
850 pcs
|
850 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Lead Style | |
| Load Current | |
| Mounting Type | |
| Output Type | |
| SVHC Present | |
| Termination Style |

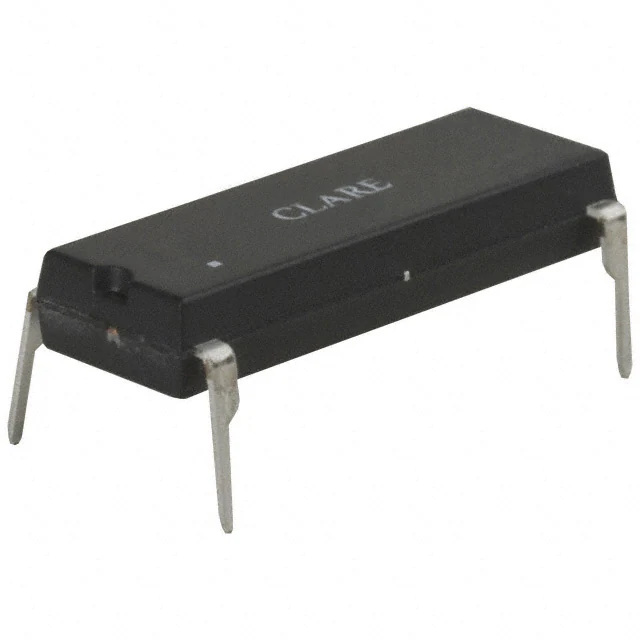

The CPC1965G from IXYS Integrated Circuits Division is a single-pole, single-throw normally open (SPST-NO) solid-state relay. It is designed for AC applications, offering zero-crossing switching capabilities.
This relay can handle a load voltage of up to 600V and a load current of 1A. It features a low input voltage requirement of 1.2VDC. The device is housed in a 16-DIP package with through-hole mounting and PC pin termination.
Key specifications include its SPST-NO circuit configuration and AC/Zero Cross output type. The through-hole mounting makes it suitable for various PCB assembly processes. The 16-DIP package with 4 leads ensures secure connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a SPST-NO (1 Form A) solid state relay.
AC with zero-cross switching.
Nominal input voltage is 1.2VDC.
Maximum load voltage is 600V, with a range of 0V to 600V.
Maximum load current is 1A.
It is a 16-DIP (0.300 inch, 7.62mm) through-hole package.
Through-hole mounting with PC pin termination.
