| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter End A | |
| Adapter End B | |
| Contact Material | |
| Contact Resistance | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Frame Material | |
| Inner Overmoulding Material | |
| Insert Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature Range | |
| Shell Material | |
| Voltage Rating |

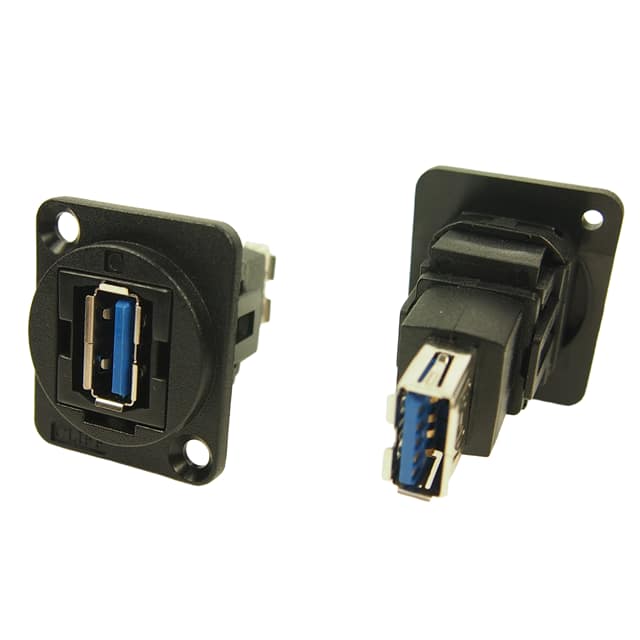

The CP30205N is a USB 3.0 A to A feed through adapter from CLIFF Electronic Components Ltd. It features a panel mount with flange design, making it suitable for secure installation in enclosures and control panels. The adapter is constructed with a nickel plated steel shell, gold plated copper alloy contacts, an ABS UL94 HB insert, and a polyamide UL94 V-2 frame, with inner overmouldings of PE and PVC.
Electrical ratings include 30V AC voltage, 1.8A maximum current, contact resistance of 50 mΩ maximum, insulation resistance of 20 MΩ minimum, and dielectric withstanding voltage of 500V AC. The operating temperature range is -20°C to 50°C. The adapter is RoHS compliant as indicated on the datasheet.
This feed through adapter is designed for USB 3.0 signal and power transmission in industrial, embedded, and commercial applications where a panel-mounted USB connection is required. The flange mounting provides a robust mechanical attachment, and the metal shell offers potential EMI shielding (not explicitly stated).
1.8 A maximum.
30 V AC.
Panel Mount, Flange.
-20°C to 50°C.
50 mΩ maximum.
20 MΩ minimum.
Nickel plated steel.
