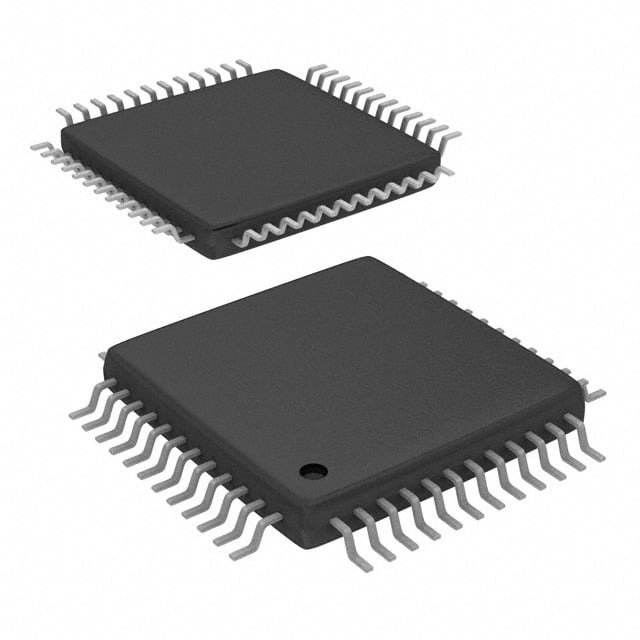

CP2200-GQ The Silicon Labs CP2200-GQ is a single-chip Ethernet controller designed for 10/100/1000 Base-T networks. It features a parallel interface and operates within a 3.1V to 3.6V supply range.
Mfr Part #:

CP2200-GQ

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs CP2200-GQ is a single-chip Ethernet controller designed for 10/100/1000 Base-T networks. It features a parallel interface and operates within a 3.1V to 3.6V supply range.
✓ Total Stock: 3,000 pcs

CP2200-GQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CP2200-GQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Plating
Control Interface
Current
Data Rate
Frequency
Function
Height
Interface
Lead Spacing
Length
Mounting Type
Number of Bits
Number of Ports
Operating Temperature
Protocol
RAM Size
Standards
Supplier Device Package
Supply Current
Supply Voltage
Termination
Termination Style
Voltage
Weight
Width
View Similar Products (0)

CP2200-GQ Description

Short technical summary and product information.

The Silicon Labs CP2200-GQ is a highly integrated single-chip Ethernet controller supporting 10, 100, and 1000 Mbps data rates. It includes an IEEE 802.3 MAC and a 10 BASE-T PHY, offering full/half duplex operation with auto-negotiation.



This controller features a parallel host interface with an 8-bit data bus and requires only 11 I/O pins in multiplexed mode. It boasts 8 kB of ISP Flash memory, eliminating the need for external EEPROM, and includes a factory pre-programmed unique 48-bit MAC address. Additional features include LED output drivers for link/activity status, dedicated transmit and receive buffers, and 5 V tolerant I/O.



The CP2200-GQ operates from a supply voltage of 3.1V to 3.6V and has an operating temperature range of -40°C to 85°C. It is housed in a compact 48-pin TQFP package with a 9x9 mm footprint, making it suitable for various embedded applications.



Software support includes a royalty-free TCP/IP stack with device drivers, a configuration wizard, and diagnostic tools. Example applications range from remote sensing and monitoring to VoIP phone adapters and embedded web servers.

CP2200-GQ Quick Information

Product Type: Ethernet Controller
Series: CP2200
Canonical Name: Silicon Labs CP2200-GQ Single-Chip Ethernet Controller
Subcategory: Interface ICs

CP2200-GQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

CP2200-GQ Features

  • Integrated IEEE 802.3 MAC and 10 BASE-T PHY.
  • Supports 10/100/1000 Base-T networks.
  • Parallel host interface with 8-bit data bus.
  • 8 kB Flash memory with factory programmed MAC address.
  • Operates from 3.1V to 3.6V supply voltage.

CP2200-GQ Applications

  • Ideal for remote sensing and monitoring.
  • Suitable for inventory management systems.
  • Used in VoIP phone adapters.
  • Applicable for point-of-sale devices.
  • Enables embedded web server functionality.

CP2200-GQ FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the CP2200-GQ?

The operating supply voltage range for the CP2200-GQ is 3.1V to 3.6V.

What package type is the CP2200-GQ available in?

The CP2200-GQ is available in a 48-TQFP package.

What is the operating temperature range for the CP2200-GQ?

The operating temperature range for the CP2200-GQ is -40°C to 85°C.

Is the CP2200-GQ RoHS compliant?

Yes, the CP2200-GQ is RoHS3 Compliant.
