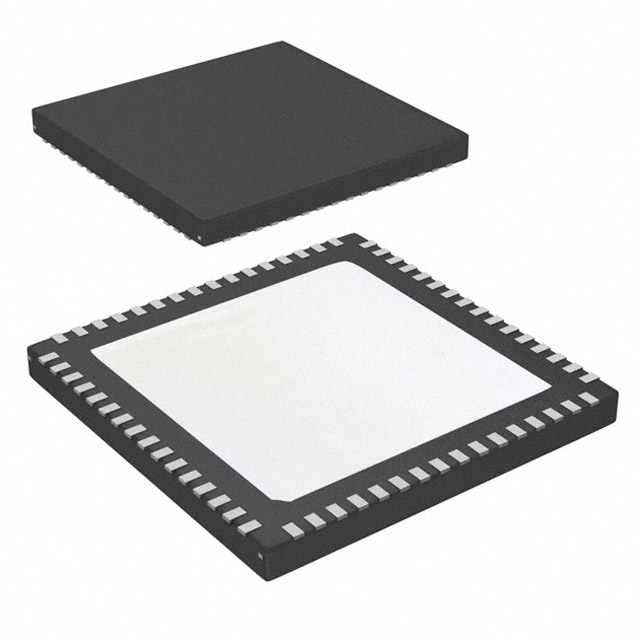

CP2108-B03-GMR The Silicon Labs CP2108-B03-GMR is a highly integrated USB to Quad UART Bridge Controller. It offers a simple solution for updating RS-232/RS-485 designs to USB.
Mfr Part #:

CP2108-B03-GMR

Available from 3 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs CP2108-B03-GMR is a highly integrated USB to Quad UART Bridge Controller. It offers a simple solution for updating RS-232/RS-485 designs to USB.
✓ Total Stock: 10,368 pcs
$ Price Range: $4.87

CP2108-B03-GMR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,741 pcs
On Request
7741 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,550 pcs
On Request
1550 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,077 pcs
On Request
1077 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CP2108-B03-GMR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Lead Style
Operating Temperature
Operating Voltage
Protocol
SVHC Present
Standards
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

CP2108-B03-GMR Description

Short technical summary and product information.

The CP2108-B03-GMR from Silicon Labs is a highly integrated USB to Quad UART Bridge Controller designed to simplify the transition of RS-232/RS-485 designs to USB connectivity. This controller features a USB 2.0 full-speed function controller, integrated USB transceiver, oscillator, and EEPROM, all within a compact 64-pin QFN package measuring 9 mm x 9 mm.



Key features include four independent UART interfaces with full modem control signals, 16 configurable GPIOs, and no firmware development requirement thanks to a simple GUI-based configurator. The integrated EEPROM allows for customization of USB Vendor ID (VID), Product ID (PID), and other device descriptors. It operates within a voltage range of 3V to 3.6V and an industrial temperature range of -40°C to 85°C.



This device is ideal for a wide range of applications, including instrumentation, industrial control, servers, and point-of-sale products. It supports royalty-free Virtual COM port (VCP) drivers, enabling easy integration with existing COM port PC applications. The CP2108 eliminates the need for external resistors and crystals, reducing component count and PCB space.

CP2108-B03-GMR Quick Information

Product Type: USB to UART Bridge Controller
Series: CP2108
Canonical Name: CP2108 USB to Quad UART Bridge Controller
Subcategory: Interface Controllers

CP2108-B03-GMR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CP2108-B03-GMR Estimated Pricing

Qty Low High
1+ $4.87 $4.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

CP2108-B03-GMR Features

  • Highly integrated USB to Quad UART bridge.
  • Four independent UART interfaces supported.
  • USB 2.0 full-speed compatible.
  • Compact 64-QFN (9x9 mm) package.
  • No firmware development required.

CP2108-B03-GMR Applications

  • Ideal for instrumentation applications.
  • Used in industrial control systems.
  • Suitable for server connectivity.
  • Applicable to point-of-sale products.

CP2108-B03-GMR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CP2108-B03-GMR?

The operating temperature range is -40°C to 85°C.

What is the operating voltage for the CP2108-B03-GMR?

The operating voltage is 3V to 3.6V.

What package type is the CP2108-B03-GMR supplied in?

The CP2108-B03-GMR is supplied in a 64-VFQFN Exposed Pad package.

What is the RoHS status of the CP2108-B03-GMR?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the CP2108-B03-GMR?

The Moisture Sensitivity Level is 1 Unlimited.

What is the REACH status for the CP2108-B03-GMR?

The REACH status is REACH Unaffected.
