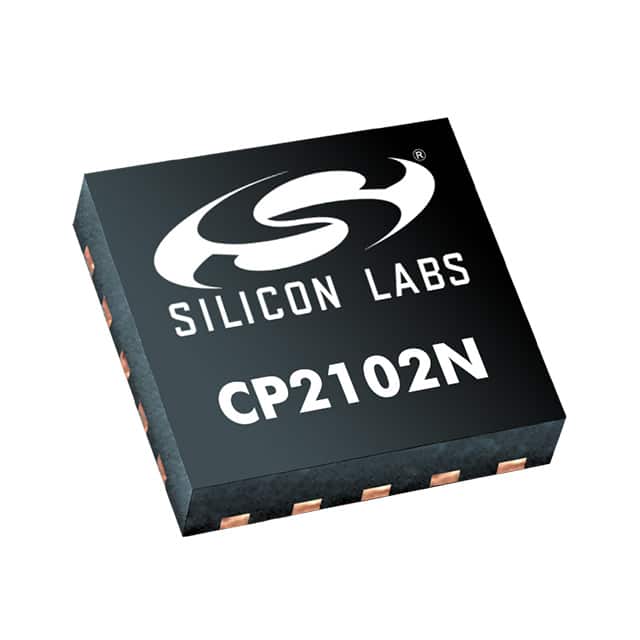

CP2102N-A02-GQFN20R The Silicon Labs CP2102N-A02-GQFN20R is a highly integrated USB-to-UART bridge controller. It provides quick USB connectivity for applications with minimal development effort.
Mfr Part #:

CP2102N-A02-GQFN20R

Available from 7 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs CP2102N-A02-GQFN20R is a highly integrated USB-to-UART bridge controller. It provides quick USB connectivity for applications with minimal development effort.
✓ Total Stock: 249,002 pcs

CP2102N-A02-GQFN20R Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CP2102N-A02-GQFN20R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Mounting Type
Operating Temperature
Protocol
Standards
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

CP2102N-A02-GQFN20R Description

Short technical summary and product information.

The Silicon Labs CP2102N-A02-GQFN20R is part of the USBXpress family, designed to simplify the addition of USB connectivity to applications. This highly integrated USB-to-UART bridge controller eliminates firmware complexity and reduces development time, making it ideal for updating RS-232 designs to USB with minimal components and PCB space.



Key features include USB 2.0 full-speed compatibility, supporting data transfer rates up to 3 Mbaud. It operates within a supply voltage range of 3V to 3.6V and consumes a low operating current of 9.5 mA. The device integrates a USB transceiver and clock, negating the need for external resistors or crystals. Customization is easily managed via a simple GUI-based configurator.



This controller is suitable for a wide range of applications, including POS terminals, USB dongles, gaming controllers, medical equipment, and data loggers. It comes in a compact 20-QFN (3x3 mm) package, designed for surface mounting.



The CP2102N-A02-GQFN20R supports USB Battery Charger Detection (USB BCS 1.2 Specification) and offers remote wakeup capabilities for waking a suspended host. It is supplied in an industrial temperature grade, operating from -40°C to 85°C.

CP2102N-A02-GQFN20R Quick Information

Product Type: USB to UART Bridge Controller
Canonical Name: Silicon Labs CP2102N-A02-GQFN20R USB to UART Bridge Controller
Subcategory: USB Bus Controller

CP2102N-A02-GQFN20R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CP2102N-A02-GQFN20R Features

  • Highly integrated USB-to-UART bridge controller.
  • USB 2.0 full-speed compatible up to 3 Mbaud.
  • Requires no external USB components.
  • Operates from 3V to 3.6V supply voltage.
  • Compact 20-QFN (3x3 mm) package.

CP2102N-A02-GQFN20R Applications

  • Ideal for updating RS-232 designs to USB.
  • Suitable for POS terminals and USB dongles.
  • Used in gaming controllers and medical equipment.
  • Applicable for data logger designs.

CP2102N-A02-GQFN20R FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the CP2102N-A02-GQFN20R?

The operating voltage range is 3V to 3.6V.

What package type is the CP2102N-A02-GQFN20R available in?

It is available in a 20-QFN (3x3) package.

What is the operating temperature range for this USB to UART bridge controller?

The operating temperature range is -40°C to 85°C.

Does the CP2102N-A02-GQFN20R comply with RoHS standards?

Yes, it is RoHS3 Compliant.
