| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mating Force | |
| Mating and Un-mating Operations | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| PCB Thickness | |
| Pitch | |
| Press-In Force | |
| Recommended PCB Hole Diameter | |
| Recommended PCB Plated Through Hole Diameter | |
| Retention Force | |
| Tape & Reel | |
| Temperature Rating | |
| Termination | |
| Termination Style | |
| Test Voltage | |
| Withdrawal Force |

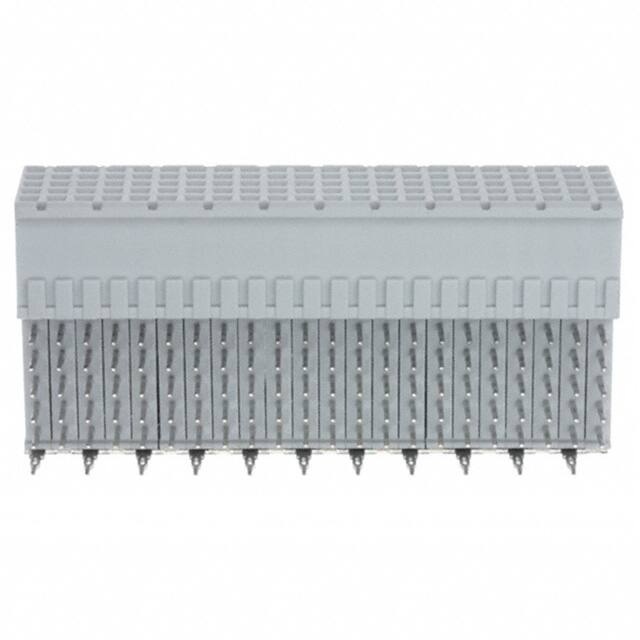

The 3M CP2-SB110-G1-TG30 is a Type B 22 press-fit socket from the CP2 series, designed for CompactPCI backplane applications. It features 132 positions (110 signal contacts plus 22 ground contacts) arranged in a 5+1 row configuration on a 2.00mm pitch. The connector uses an eye-of-the-needle compliant pin press-fit termination for reliable solderless assembly, reducing manufacturing time and cost.
Electrical performance includes a current rating of 1.0A per contact at 70°C with all contacts powered, contact resistance of ≤20 mΩ, insulation resistance of ≥10,000 MΩ, and a test voltage of 750V AC RMS. The operating temperature range spans -55°C to +125°C.
The connector is housed in a high-temperature thermoplastic (LCP) insulator with UL94V-0 flammability rating. Contacts are copper alloy with 30µin (0.76µm) gold plating. The right-angle through-hole mounting with press-fit termination is suitable for PCB thicknesses from 1.4 to 4.2 mm, with recommended drill hole diameter of 0.7±0.02 mm and plated through-hole diameter of 0.6±0.05 mm.
132 positions total: 110 signal contacts plus 22 ground contacts.
2.00mm (0.079 inches).
1.0A per contact at 70°C with all contacts powered.
-55°C to +125°C.
Press-fit (eye-of-the-needle compliant pin).
Gold, 30µin (0.76µm) thickness.
Listed as RoHS3 Compliant, but unverified. Datasheet references RIA E1 & C1 for compliance information.
