| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
950 pcs
|
950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Failure Rate | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| PCB Drill Hole Diameter | |
| PCB Plated Through Hole Diameter | |
| PCB Thickness | |
| Pitch | |
| Press-In Force | |
| Retention Force | |
| Shielding | |
| Standards | |
| Termination | |
| Test Voltage | |
| Withdrawal Force |

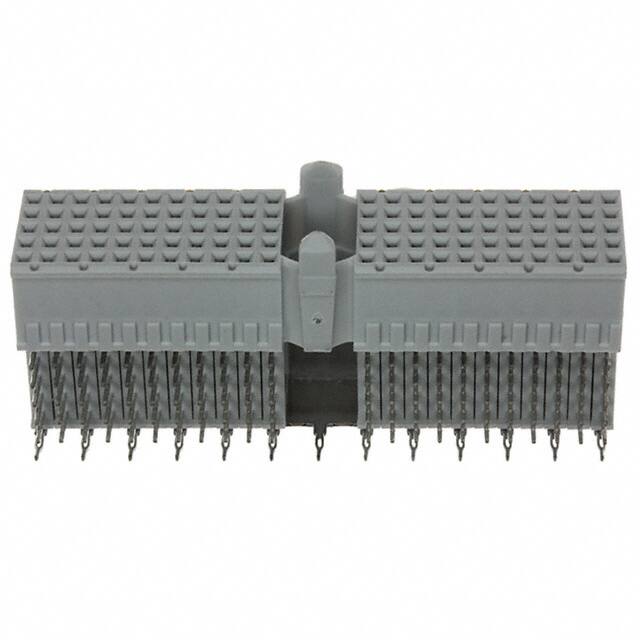

The 3M CP2-SA110-G1-TG30 is a 2mm Type A 110 signal contact right angle press-fit socket from the CP2 series. It features a receptacle with female sockets, gold-plated contacts, and an upper shield for improved EMI immunity.
This connector uses an eye-of-the-needle compliant pin press-fit termination, reducing manufacturing time and cost. It is designed according to IEC 61076-4-101 and IEC 60352-5 standards and mates with 5-row 3M MetPak HM and CP2 headers.
Key specifications include a contact resistance of ≤20 mΩ, insulation resistance of ≥10,000 MΩ, and a test voltage of 750V ACRMS. The operating temperature range is -55°C to +125°C, and the insulation material is high temperature thermoplastic (LCP) with UL94V-0 flammability rating.
The pitch is 2.00mm (0.079 inches).
It has 110 positions, all loaded, arranged in 5 rows.
Through hole, right angle mounting with press-fit termination.
-55°C to +125°C.
Maximum 20 mΩ.
IEC 61076-4-101 and IEC 60352-5.
