| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78,380 pcs
|
78380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Dimensions | |
| For Use With | |
| Height | |
| Lens Size | |
| Lens Style | |
| Material | |
| Mounting Type | |
| Number of LEDs | |
| Optical Pattern | |
| Type | |
| Viewing Angle |

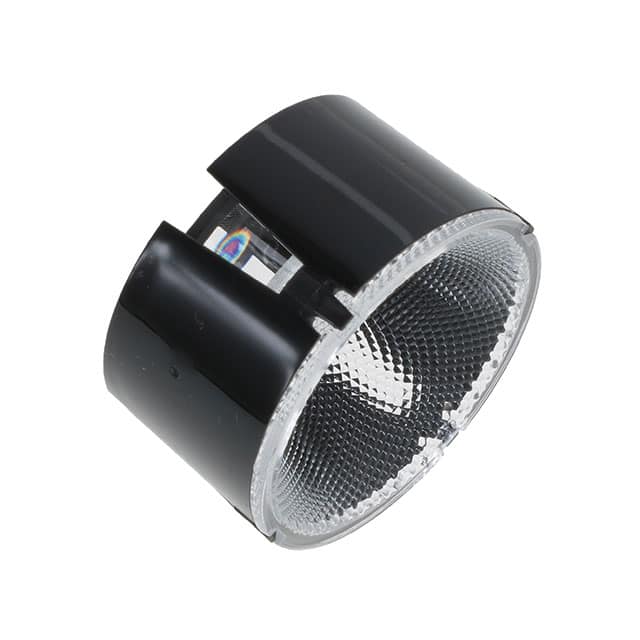

This Ledil CP17403_YASMEEN-50-WW-C is a lens assembly with a holder, designed for optical applications requiring a wide beam pattern. The clear PMMA lens provides a nominal beam angle of 60 degrees.
The lens has dimensions of 49.9 x 49.9 mm and a height of 28.1 mm. It is constructed with a PMMA lens and a black PC holder. This component is compatible with a wide range of LEDs from manufacturers such as Bridgelux, Cree, Lumileds, and Samsung.
Optical performance varies depending on the LED used. For example, with LED V10 Gen 8, the Full Width Half Maximum (FWHM) beam angle is 55.0 degrees, and the efficiency is 82%. With LED Vesta DTW 13mm, the FWHM is 51.0 degrees and efficiency is 79%.
The assembly is designed for socket mounting and is RoHS3 compliant. It is supplied in boxes of 252 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The lens provides a ~60° wide beam angle.
The dimensions are 49.9 x 49.9 mm.
The single lens is made from PMMA.
The holder is made from PC.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
It is REACH Unaffected.
