| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Dimensions | |
| For Use With | |
| Height | |
| Lens Size | |
| Lens Style | |
| Mounting Type | |
| Number of LEDs | |
| Optical Pattern | |
| Type | |
| Viewing Angle |

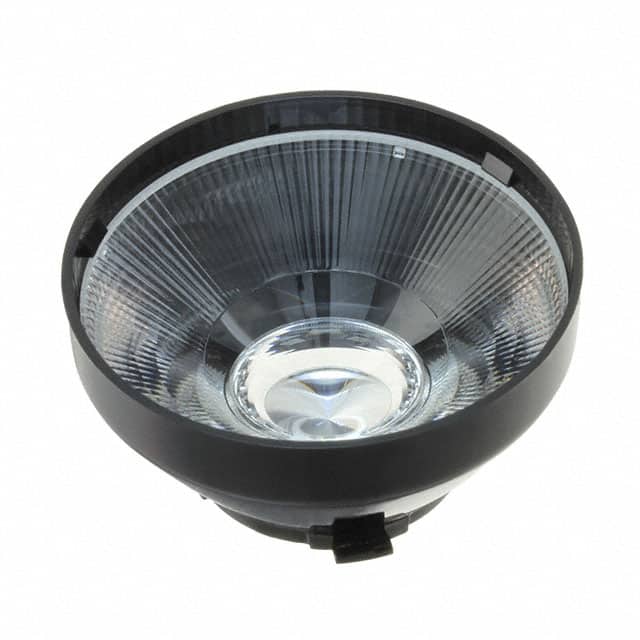

The Ledil CP16106_CARMEN-50-RS-C is an optical lens assembly designed for LED illumination applications. This component features a clear lens with a concave top, housed in a black holder, and offers a spot beam pattern.
With a 50mm diameter and a height of 25.5mm, the lens is designed for socket mounting. It is compatible with various LED types, including those from Bridgelux, Citizen, Cree, Lumileds, and Samsung. The optical performance varies depending on the LED used, with typical Full Width Half Maximum (FWHM) angles ranging from 10.0° to 17.0° and Full Width Tenth Maximum (FWTM) angles from 19.0° to 33.0°.
Efficiency ratings range from 51% to 71%, and peak intensity can reach up to 16 cd/lm. The lens material is PMMA, and the holder is made of PC. This product is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This lens assembly is suitable for applications requiring focused light output, such as task lighting, spotlights, and architectural lighting. Its compatibility with multiple LED manufacturers provides design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The viewing angle is 10° to 16°.
The lens has a diameter of 50.0 mm and a height of 25.5 mm.
The optical pattern is a spot beam.
The product is RoHS3 Compliant.
The MSL is 1 Unlimited.
