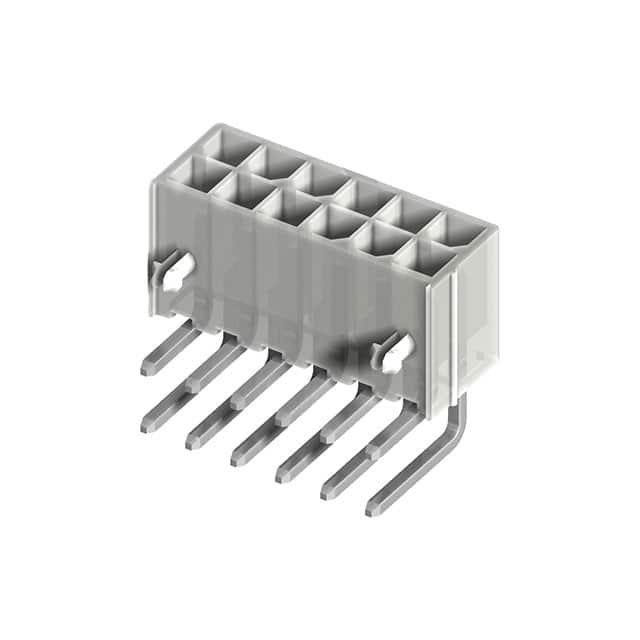

The CVILUX CP-01408150 is a rectangular connector header designed for board-to-cable/wire applications. It features 8 male pins in a 2-row configuration with a 4.20mm pitch and 0.165" row spacing. The connector is shrouded on all 4 walls and includes a locking ramp fastening system for secure mating. Mounting is through hole right angle with solder termination.
The contacts are made of brass with a tin finish and are square in shape with a contact length of 3.50mm. The housing is molded from polyamide (PA66) nylon 6/6 in a natural color. The header has an insulation height of 10.00mm and includes a board lock feature for additional retention on the PCB.
Electrically, the header is rated for 9A current and 600VAC voltage. It operates over a temperature range of -40°C to 105°C. The insulation material has a flammability rating of UL94 V-0. This part is commonly used in power and signal interconnect applications requiring a reliable locking connection.
8 positions, loaded all.
4.20mm.
9A.
600VAC.
Through Hole, Right Angle with solder termination.
Yes, shrouded on all 4 walls with a locking ramp fastening type.
-40°C to 105°C.
