| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Enable/Disable Function | |
| Fall Time (Max) | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Halogen Free | |
| Height | |
| Jitter RMS (Max) | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load (Max) | |
| Output Type | |
| Output Voltage High (Min) | |
| Output Voltage Low (Max) | |
| Package / Case | |
| Rise Time (Max) | |
| SVHC Present | |
| Stand-by Current (Max) | |
| Start-up Time (Max) | |
| Storage Temperature Range | |
| Supply Voltage | |
| Symmetry (Duty Cycle) | |
| Termination Finish | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| supply_current (Maximum @ Ta=25 °C) | |
| supply_current (Typical) |

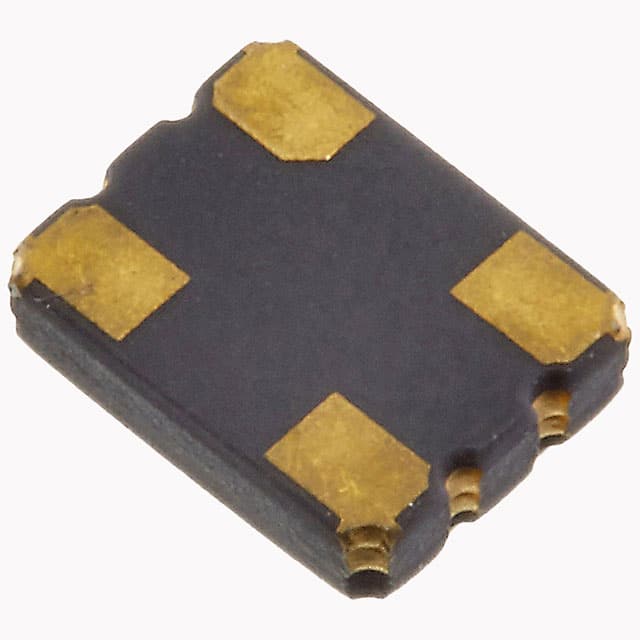

The Raltron COM118025-25.000-EXT-T-TR is a surface-mount crystal oscillator (XO) providing a 25.000 MHz HCMOS output. It is designed for a nominal supply voltage of 1.8 VDC with ±10% tolerance. The device delivers a clean HCMOS-compatible clock signal with a typical supply current of 6 mA and a maximum of 20 mA at 25°C.
Key electrical characteristics include a frequency stability of ±25 ppm inclusive of temperature, voltage, and aging effects. The output has symmetrical duty cycle between 45% and 55% with fast rise and fall times of 3 ns maximum into a 15 pF load. An Enable/Disable function (pin 1) allows the output to be placed in high impedance state for power saving.
The oscillator is housed in a standard 4-SMD, no-lead package measuring 3.2 mm x 2.5 mm x 1.0 mm with gold termination finish. It is rated for an operating temperature range of -40°C to +85°C and storage from -55°C to +125°C. The device is RoHS, REACH, and Halogen-Free compliant with MSL Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 200+ | $0.55 | $0.55 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to +85°C.
1.8 VDC with ±10% tolerance.
Yes, RoHS3 compliant as per the datasheet.
4-SMD, no-lead surface mount package.
