| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

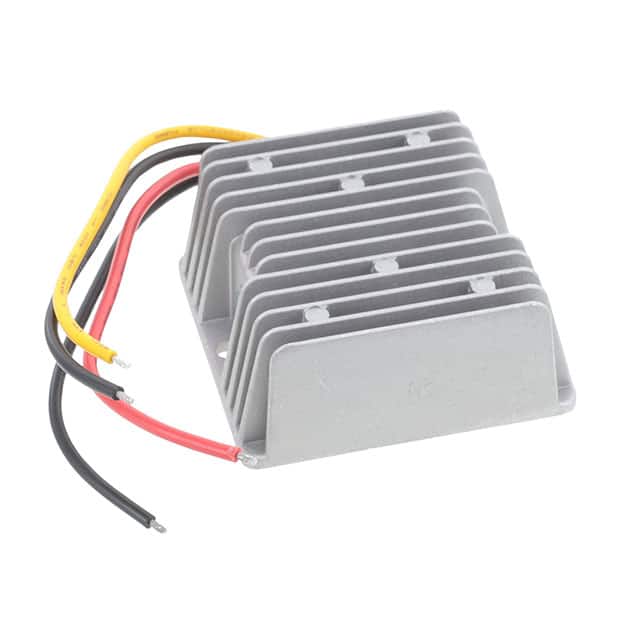

The SparkFun Electronics COM-18732 is a non-isolated DC/DC converter designed for reliable power conversion. It operates with an input voltage range from 8V to 36V DC, delivering a consistent 12V DC output. This converter can supply a maximum current of 6A, providing a total output power of 72W. It boasts a high efficiency rating of 94.2% at typical operating conditions (12Vin, 6A output), minimizing energy loss.
The unit is enclosed and designed for chassis mounting, making it suitable for integration into various industrial and commercial systems. Its dimensions are 74mm x 74mm x 32mm, offering a compact form factor for its power capabilities. The operating temperature range is -40°C to 50°C, ensuring performance in diverse environmental conditions. The converter also meets CE standards, indicating compliance with European safety regulations.
Key features include a single output, high efficiency due to synchronous rectification technology, and input transient absorption protection. It also supports a -40°C environment and has a waterproof level of IP68. The model is suitable for applications in industrial settings, alternative energy, golf carts, forklifts, electromotors, telecommunications, boats & yachts, and medical devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.95 | $24.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 8-36V DC.
The output voltage is 12V DC and the maximum output current is 6A.
The maximum power output is 72W.
The efficiency is typically 94.2%.
The operating temperature range is -40°C to 50°C.
The dimensions are 74mm x 74mm x 32mm.
Yes, it is RoHS3 Compliant.
